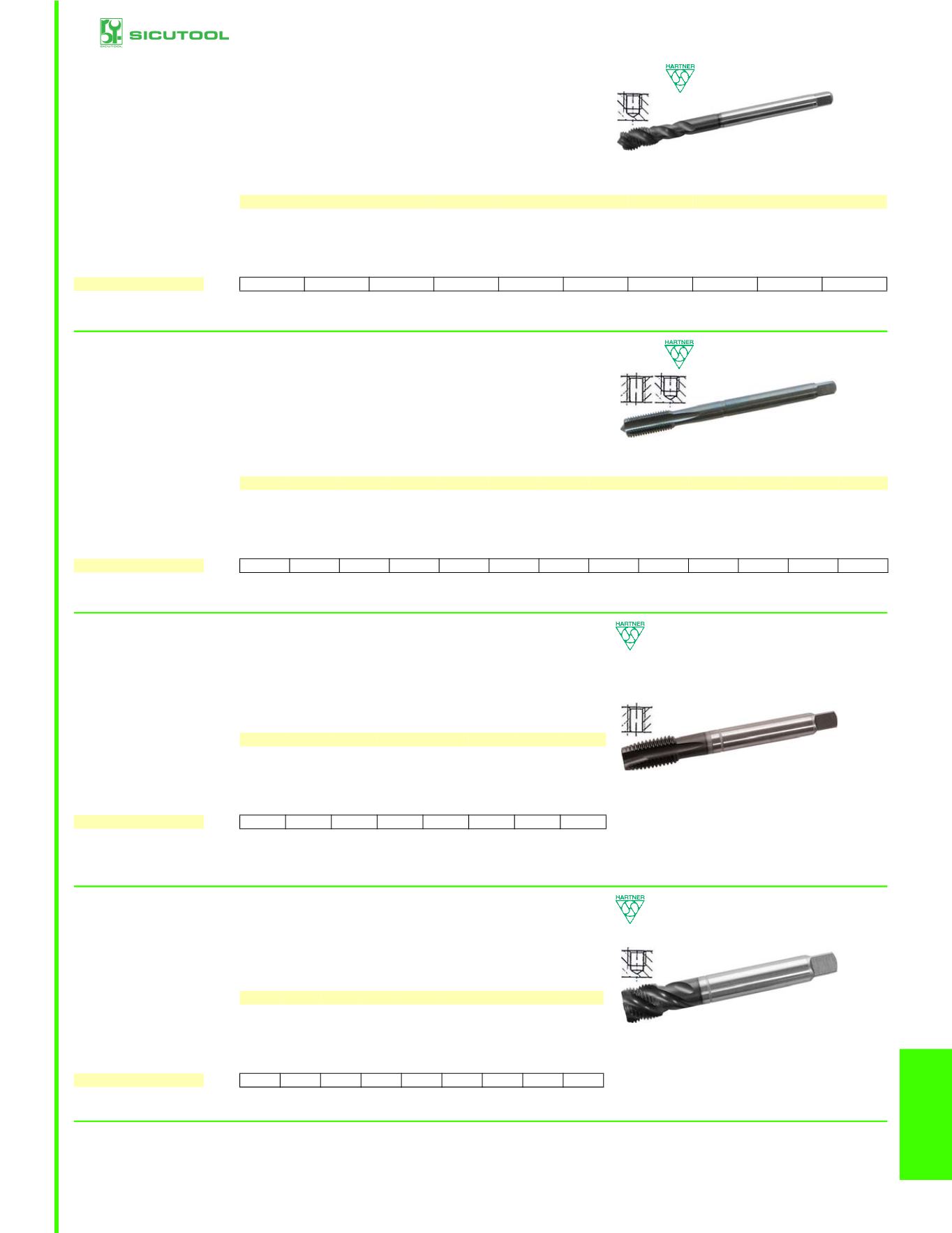

HIGH EFFICIENCY MACHINE TAPS
13
9081R
new
UNF
HSS-E
TiAIN
Orig. Hartner - Art. 80833
Product description as Art. 9081P
Reduced shank, with 40° helix for deep blind holes.
Thread: American - UNF Pitch - ANSI-B1.1 (DIN 374). Tolerance 2B. Right-hand use. TiAlN
coated. For all types of steels, also for hardened non-alloy steel, stainless steel, nitrided steel,
non-oxidizable and antacid steel up to 1000 N / mm2, aluminum, its alloys and long-chipping
metals.
Thread UNF
Nr. 10
Nr. 12
1/4
5/16
3/8
7/16
1/2
5/8
7/8
1
Threads per inch
Nr
32
28
28
24
24
20
20
18
14
12
Overall length
mm 70
80
80
90
90
100
100
100
125
140
Thread length
mm 8,5
9
9
11
11
13
13
15
19
22
Shank Ø
mm 3,5
4
4,5
6
7
8
9
12
18
18
Shank square
mm 2,7
3
3,4
4,9
5,5
6,2
7
9
14,5
14,5
9081R
Each 87,30
80,60
94,90
94,90
105,00
139,00
147,00
192,00
340,00
478,00
For Ø holes for tapping see technical tables and tips Art. 8400 G - 8500 G.
vuoto
HIGHEFFICIENCYMACHINETAPS
9081T
new
UNF
HSS-E
Orig. Hartner - Art. 80753
In HSS-E steel, particularly treated for superior performance and long life. Ground and polished
after hardening. Cutting geometry optimized for maximum chip evacuation.
Reduced shank, short chamfer for through and blind holes. Thread: American - UNF Pitch - ANSI-
B1.1 (DIN 374). Tolerance 2B. Right-hand use. With nitrided surface. For all types of cast iron and
its alloys, non-ferrous short chipping metals and aluminum alloys with silicon (> 6%).
Thread UNF
Nr. 4 Nr. 6 Nr. 8 Nr. 10 1/4
5/16
3/8
7/16
1/2
9/16
3/4
7/8
1
Threads per inch
Nr
48
40
36
32
28
24
24
20
20
18
16
14
12
Overall length
mm 56
56
63
70
80
90
90
100
100
100
110
125
140
Thread length
mm 10
11
12
14
16
18
18
22
20
22
25
25
28
Shank Ø
mm 2,2
2,5
2,8
3,5
4,5
6
7
8
9
11
14
18
18
Shank square
mm -
2,1
2,1
2,7
3,4
4,9
5,5
6,2
7
9
11
14,5 14,5
9081T
Each 50,80 43,70 40,80 43,20 50,80 48,90 53,70 65,20 65,20 106,00 114,00 171,00 236,00
For Ø holes for tapping see technical tables and tips Art. 8400 G - 8500 G.
vuoto
HIGHEFFICIENCYMACHINETAPS
9082A
new
BSP
HSS-E
TiAIN
Orig. Hartner - Art. 80804
"TOP" line. In HSS-E steel, particularly treated for superior performance and long life. Ground and
polished after hardening. Cutting geometry optimized for maximum chip evacuation.
Reduced shank, correct chamfer for through holes.
Thread: cylindrical gas G - BSP - DIN 5156. Right-hand use. TiAlN coated. For all types of steels,
also for hardened non-alloy steel, stainless steel, nitrided steel, non-oxidizable and antacid steel
up to 1000 N / mm2, aluminum, its alloys and long-chipping metals.
Ø
inch
1/8
1/4
3/8
1/2
5/8
3/4
7/8
1
Threads per inch
Nr
28
19
19
14
14
14
14
11
Overall length
mm 90
100 100 125 125 140 150 160
Thread length
mm 18
20
22
25
25
28
28
30
Shank Ø
mm 7
11
12
16
18
20
22
25
Shank square
mm 5,5
9
9
12
14,5
16
18
20
9082A
Each 82,50 114,00 139,00 191,00 248,00 315,00 508,00 470,00
When the stocks will be run out, the taps will be provided with AlTiZrN coating in golden color instead of TiAlN coating.
For Ø holes for tapping see technical tables and tips Art. 8400 G - 8500 G.
vuoto
HIGHEFFICIENCYMACHINETAPS
9082B
new
BSP
HSS-E
TiAIN
Orig. Hartner - Art. 80834
Product description as Art. 9082A
Reduced shank, with 40° helix for deep blind holes.
Thread: cylindrical gas G - BSP - DIN 5156. Right-hand use. TiAlN coated. For all types of steels,
also for hardened non-alloy steel, stainless steel, nitrided steel, non-oxidizable and antacid steel
up to 1000 N / mm2, aluminum, its alloys and long-chipping metals.
Ø
inch
1/16 1/8 1/4 3/8 1/2 5/8 3/4 7/8
1
Threads per inch
Nr
28 28 19 19 14 14 14 14 11
Overall length
mm 90 90 100 100 125 125 140 150 160
Thread length
mm 11 11 14 14 18 18 20 22 24
Shank Ø
mm 6
7
11 12 16 18 20 22 25
Shank square
mm 4,9 5,5
9
9
12 14,5 16 18 20
9082B
Each 123,00 106,00 140,00 227,00 269,00 323,00 424,00 470,00 537,00
For Ø holes for tapping see technical tables and tips Art. 8400 G - 8500 G.
