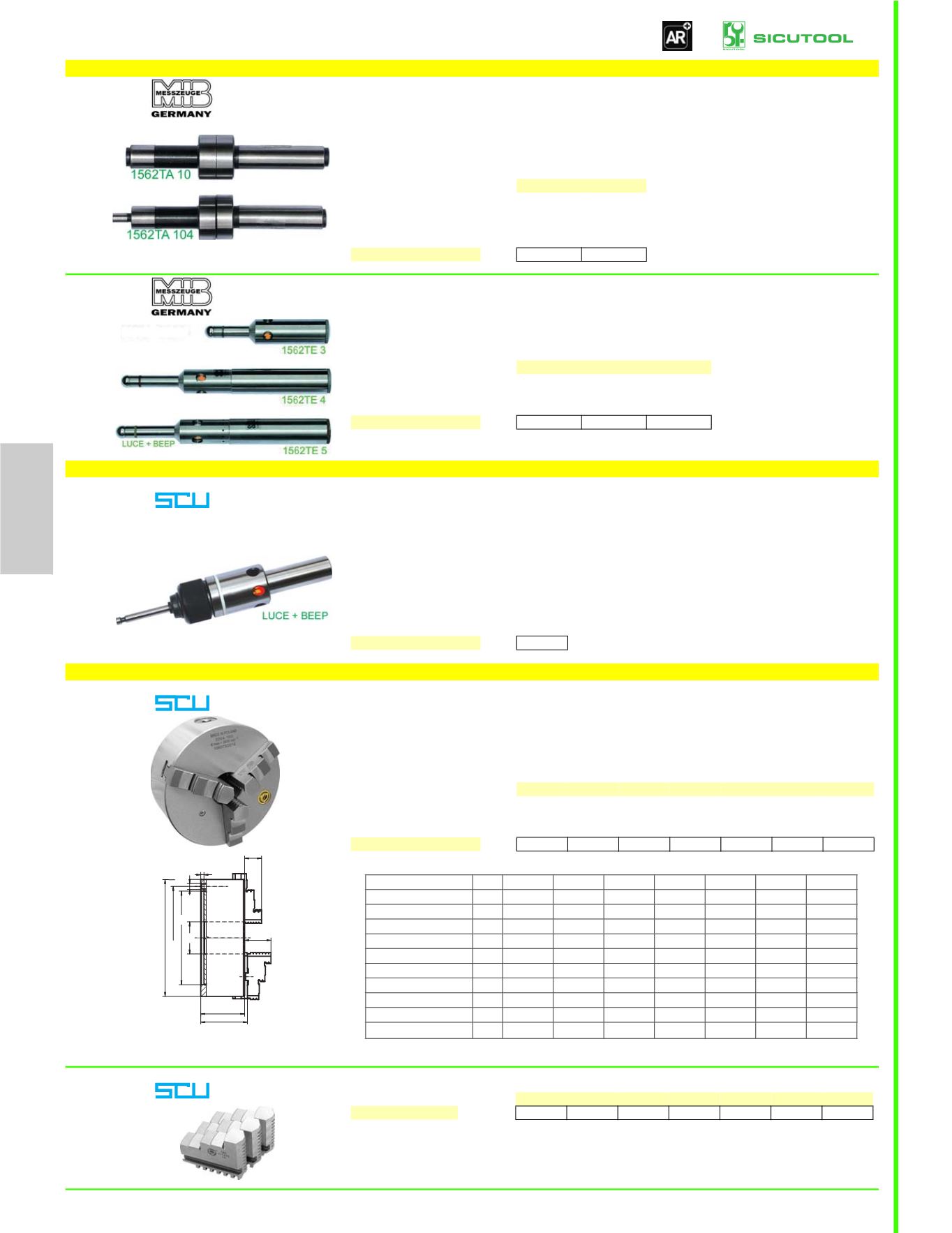

TASTERS AND CENTRING TOOLS FOR EDGES
TASTERS AND CENTRING TOOLS FOR EDGES
1562TA
Orig. MIB
Rotation-type. Hardened and ground steel.
The tasting head is elastically connected to the connection tang for a precise alignment of
0.01mm.
For a rapid alignment of piece/profiles reference surfaces.
Rotation speed 500/600 rpm.
Size
10
104
probe head Ø
mm 10
4 and 10
Drive Ø
mm 10
10
Overall length
mm 84
94
Supplier code ....................
01027096 01027097
1562TA
Each 34,50
39,20
vuoto
TASTERSANDCENTRINGTOOLSFOREDGES
1562TE
Size 3 and 4 with lighting signal when the piece is touched.
Size 5 with lighting and sound signal when the piece is touched.
Complete with battery.
Used for setting drilling centres with respect to the machine chuck and aligning piece/profiles
reference surfaces. Hardened special steel tasting balls Ø 10mm.
Size
3
4
5
Drive Ø
mm 20
20
20
Overall length
mm 103
160
160
Supplier code ....................
01027093 01027094 01027095
1562TE
Each 126,00
149,00
157,00
vuoto
TASTERSANDCENTRINGTOOLSFOREDGES
ELECTRONIC 3-D CENTRING TOOLS, WITH LIGHT AND SOUND GENERATING MECHANISM
1562V
Prod. SCU
Electronic device used to set distances or values to zero.
Used for centring inside/outside circumferences by defining drilling centres with respect to the
machine chuck and aligning piece/profiles reference surfaces.
Hardened special steel tasting ball Ø 6mm ± 0.005. Ball shank total length 43mm (ball included)
and safety shifting 4mm. Lighting and sound signal when the piece is touched. V 12 battery.
Complete with instructions for use.
Drive Ø
mm 20
Drive length
mm 54
Overall length
mm 175
1562V
Each 600,00
vuoto
ELECTRONIC3-DCENTRING TOOLS,WITH LIGHTANDSOUNDGENERATINGMECHANISM
SELF-CENTRING CHUCKS
1563P
new
J
C
G
L
B
B1
A
F
D
E
Prod. SCU
Single guide, special spheroidal die cast body.
3-jaws very high-precision model.
With 2 jaw sets: 1 for inside use, 1 for outside use and wrench. Slipping parts hardened and
ground. Excellent vibration absorption, forged crown, balanced and hardened. In compliance with
DIN 6350 standards.
Ø
mm
80
100
125
160
200
250
315
Bore Ø
mm 16
20
32
42
55
76
103
rev/min
Nr
5000 4500 4000 3600 3000 2500 2000
Tightening force
kN 10
17
24
31
37
46
55
1563P
Each 382,00 424,00 454,00 488,00 606,00 847,00 1.300,00
vuoto
A (Diametro)
mm 80
100
125
160
200
250
315
B
mm 44
50
56
64,5
75
85
94
B1
mm -
-
60,8 69,3 79,8 88,8 99,1
C
mm 3
3
4
4
4
5
5
D H7
mm 56
70
95
125
160
200
260
E
mm 16
20
32
42
55
76
103
F
mm 67
83
108
140
176
224
286
G
mm 3xM6 3xM8 3xM8 6xM10 6xM10 6xM12 6xM16
J
mm 13
16
20
32
29
34
43
L
mm -
-
40
43
45
53
57
Peso c.a.
Kg 1,5
2,8
5
10
17,5
29
50
Riferimenti quote
SELF-CENTRINGCHUCKS
1563R
new
Set of 3 internal jaws in tempered steel, integral. For Art. 1563 P.
Ø
mm
80
100
125
160
200
250
315
1563R
Per series 110,00 127,00 133,00 152,00 162,00 201,00 329,00
