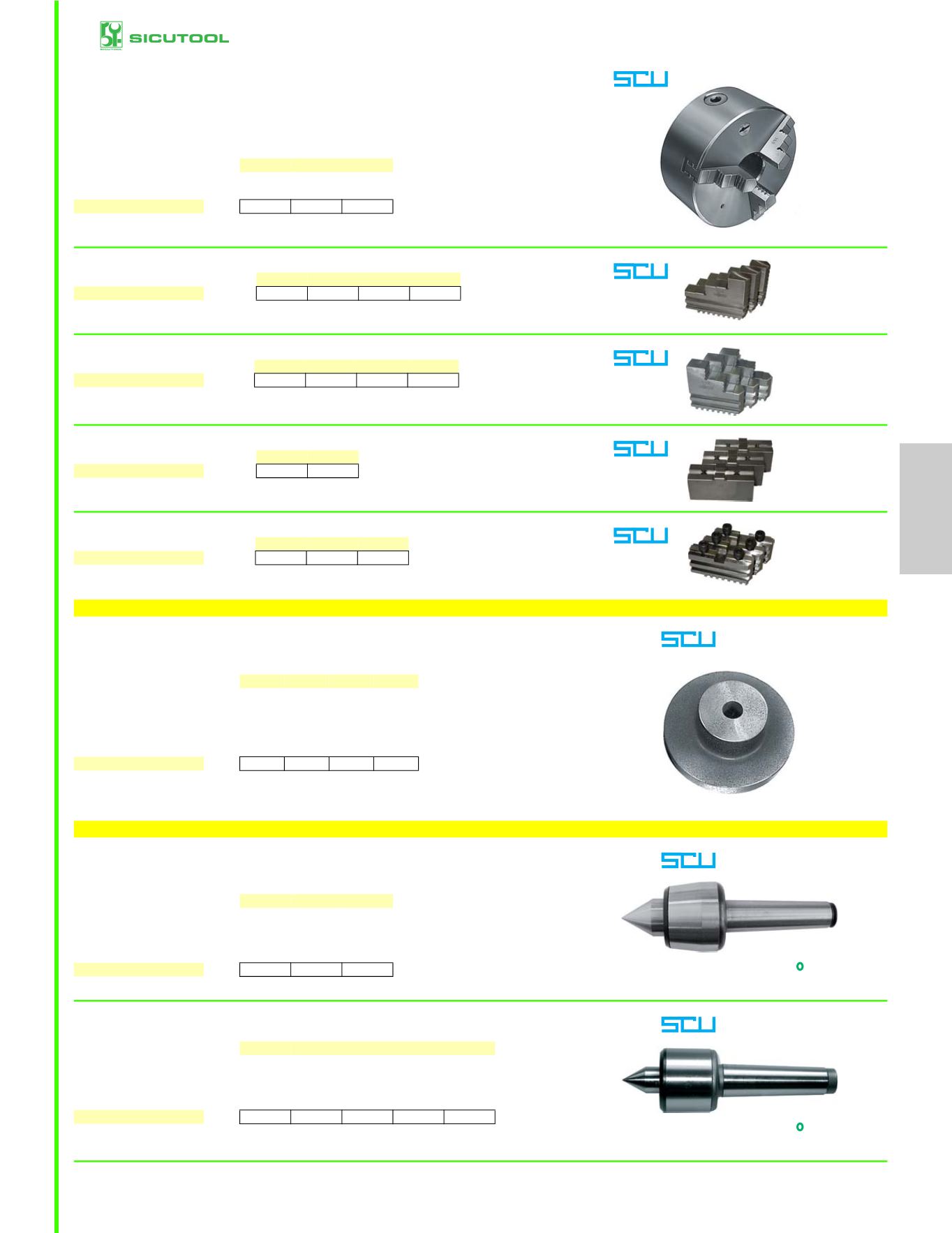

455 / 1410
455
Prices in EURO - VAT not included
6
455
SELF-CENTRING CHUCKS
1570G
Prod. SCU - Röhm
Double guide, special spheroidal die cast body.
3-jaws very high-precision model.
With 2 jaw sets: 1 for inside use, 1 for outside use and wrench. Slipping parts hardened and
ground. High clamping values, guaranteed by pinion and crown extra-toothing. Pinions and crown
ground and hardened. In compliance with DIN 6350 standards.
Ø
mm
200
250
315
Bore Ø
mm 55
76
103
Weight
Kg
15
26,5
48
1570G
Each 2.100,00 2.910,00 4.460,00
Product running out of stock
vuoto
SELF-CENTRINGCHUCKS
1570GA
Sets of 3 internal jaws, hardened. For Art. 1570 G.
Ø
mm
200
230
250
315
1570GA
Per series 721,00 905,00 960,00 1.380,00
Product running out of stock
vuoto
SELF-CENTRINGCHUCKS
1570GB
Sets of 3 external jaws, hardened. For Art.1570 G.
Ø
mm
200
230
250
315
1570GB
Per series 695,00 905,00 943,00 1.490,00
Product running out of stock
vuoto
SELF-CENTRINGCHUCKS
1570GE
Sets of 3 blocks, not hardened. Per Art. 1570 G.
Ø
mm
200
315
1570GE
Per series 112,00 224,00
Product running out of stock
vuoto
SELF-CENTRINGCHUCKS
1570GF
Sets of 3 hardened supports, for blocks. Per Art. 1570 G.
Ø
mm
200
250
315
1570GF
Per series 646,00 723,00 1.170,00
Product running out of stock
vuoto
SELF-CENTRINGCHUCKS
FACE PLATE FOR SELF-CENTRING CHUCKS
1571P
Prod. SCU
In die cast. Fusion raw finish.
The dimensions listed below are indicative and may be subject to change.
Flange Ø
mm
90
115 145 320
Flange height
mm 15
22
18
25
Bore Ø
mm 30
30
15
30
Hub Ø
mm 60
85
72
118
Hub height
mm 30
35
40
55
Weight
Kg 1,5
3
4,5
25
1571P
Each 18,70 29,80 30,90 167,00
The dimensions listed below are indicative and may be subject to change.
Product running out of stock
vuoto
FACEPLATEFORSELF-CENTRINGCHUCKS
REVOLVING CENTERS
1578
60
Prod. SCU
Light. Made of hardened and ground steel, hardness HRC 61-62.
With tip at 60°.
Drive
C.M.
2
3
4
Rotating tip Ø
mm 25
28
32
Body Ø
mm 45
52
60
Radial workload
N 560
790
1100
Weight
Kg 0,350 0,700 1,200
1578
Each 92,10 114,00 129,00
vuoto
REVOLVINGCENTERS
1579
60
Type precision, In forged steel, hardened and ground. Hardness HRc 61-62.
Point at 60°
Drive
C.M.
1
2
3
4
5
Rotating tip Ø
mm 10
18
23
25
38
Body Ø
mm 28
41
50
60
75
Max load
Kg
80
180
270
550
1000
Weight
Kg 0,200 0,550 0,970 1,550 3,200
1579
Each 129,00 134,00 172,00 246,00 358,00
C.M. 6 revolving centres available on request.
vuoto
REVOLVINGCENTERS
