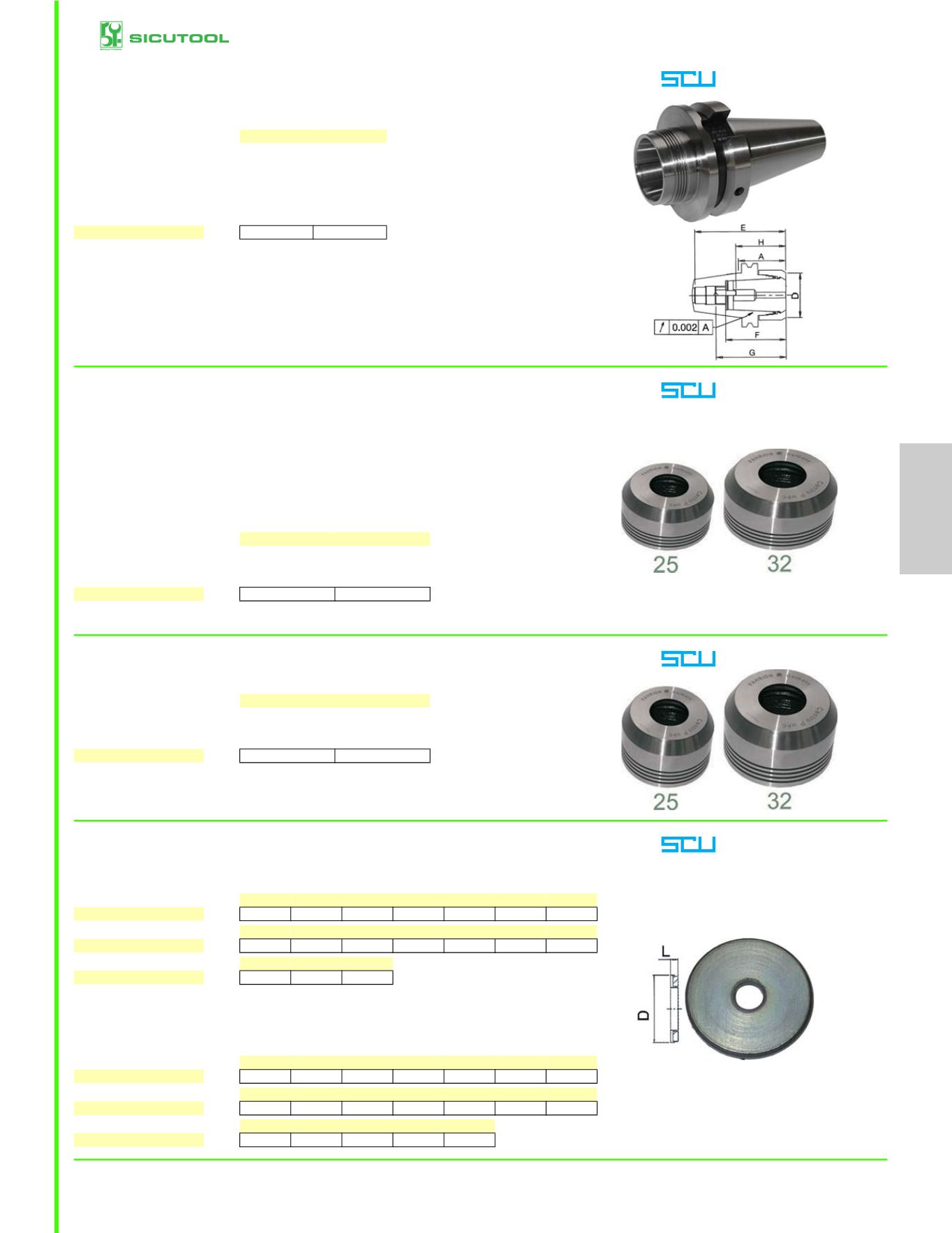

HIGH QUALITY PINCERS HOLDER CHUCKS, HIGH SPEED
1560GM
Product description as Art. 1560GH
MAS/BT ER PINCERS HOLDER CHUCKS
MAS/BT BT 40 shank, M16 internally threaded end.
Balancing level G 6.3 15000 rpm
Type
25
32
Tightening capacity Ø mm 2-16
2-20
Height D
mm 40
50
Height a
mm 55
55
Height E
mm 93
95
Height F
mm -
55
For pliers Art.
1561 GL
1561 GN
1560GM
Each 189,00
189,00
Chucks are supplied without locking collars and without seal rings.
For locking collars and rings see Art. 1560 GPA-B-C-E.
The E value refers to tools with shank < or = 16mm.
The F value refers to tools with shank > 16mm.
vuoto
HIGHQUALITYPINCERSHOLDERCHUCKS,HIGHSPEED
1560GPA
Suitable for DIN 6499/ISO 15488 ER collets. For DIN 6535 shanks and full diameters also with
internal lubrication. High-precision, very high tighteness, max centring of tools such as milling
cutters, drills, countersinks, reamers, boring bars, etc. with the highest torque. The perfect
manufacture of the trapezoidal threaded and long double guide locking collar ensures max
centring, higher rotation precision and repetibility, long-term performance and easy replacement
of tapping collets.
If used together with orig. Fahrion collets Art. 1561 GL-N, this product ensures a precision inferior
or equal to 8 µm.
LOCKING COLLARS FOR CHUCKS
For ER pincer holder chucks Art.1560 GH-L-M.
Type
25
32
Max Ø
mm
40
50
For chucks Art.
1560 GH-L-M 25 1560 GH-L-M 32
For pliers Art.
1561 GL
1561 GN
1560GPA
Each
68,60
73,20
For tightening wrenches see Art. 1560GRA B25/32
vuoto
HIGHQUALITYPINCERSHOLDERCHUCKS,HIGHSPEED
1560GPB
Product description as Art. 1560GPA
LOCKING COLLARS FOR USE WITH SEALING RINGS
For ER pincer holder chucks Art.1560 GH-L-M.
Type
25
32
Max Ø
mm
40
50
For chucks Art.
1560 GH-L-M 25 1560 GH-L-M 32
For pliers Art.
1561 GL
1561 GN
1560GPB
Each
80,10
84,60
Locking collars are supplied without seal rings. For seal rings see Art. 1560 GPC-GPE.
For tightening wrenches see Art. 1560GRA B25/32
vuoto
HIGHQUALITYPINCERSHOLDERCHUCKS,HIGHSPEED
1560GPC
1560GPE
SEALING RINGS FOR CHUCKS
Size 25.
To be used with locking collars Art. 1560 GPB 25 and collets Art. 1561 GL. Dimensions (mm)
D=20,2 L=2. For pressures up to 80 bar.
Tightening Ø
mm
2
2.5
3
3.5
4
5
6
1560GPC
Each 28,80 28,80 23,50 23,50 23,50 23,50 23,50
Tightening Ø
mm
7
8
9
10
11
12
13
1560GPC
Each 23,50 23,50 23,50 23,50 23,50 23,50 23,50
Tightening Ø
mm
14
15
16
1560GPC
Each 23,50 23,50 23,50
vuoto
SEALING RINGS FOR CHUCKS
Size 32.
To be used with locking collars Art. 1560 GPB 32 and collets Art. 1561 GN. Dimensions (mm)
D=26,2 L=2. For pressures up to 80 bar.
Tightening Ø
mm
2
3
4
5
6
7
8
1560GPE
Each 29,90 24,60 24,60 24,60 24,60 24,60 24,60
Tightening Ø
mm
9
10
11
12
13
14
15
1560GPE
Each 24,60 24,60 24,60 24,60 24,60 24,60 24,60
Tightening Ø
mm
16
17
18
19
20
1560GPE
Each 24,60 24,60 24,60 24,60 24,60
vuoto
