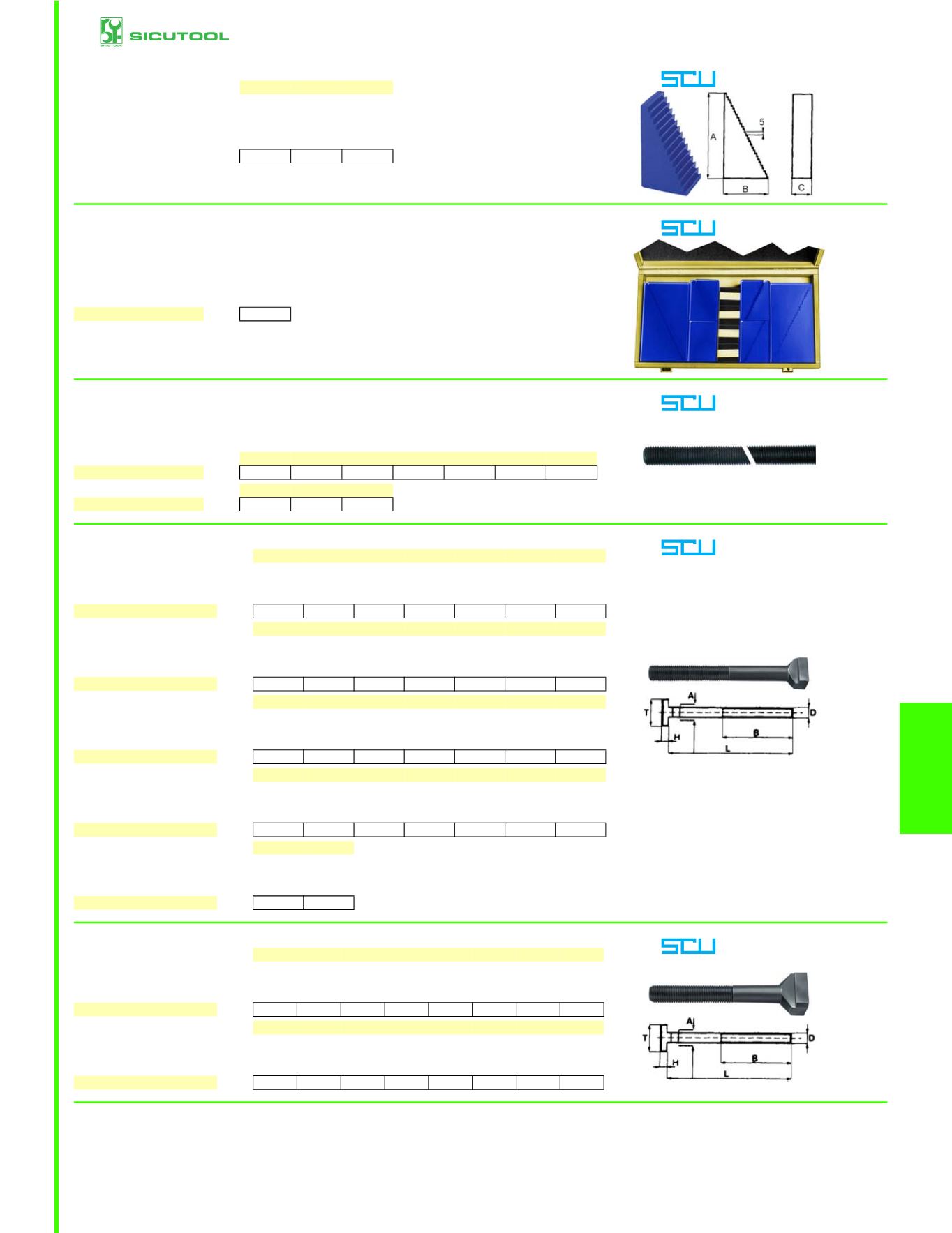

673 / 1410
673
Prices in EURO - VAT not included
673
CLAMPING DEVICES
9
2828L
2828P
2828R
Toothed supports, particularly suitable to be used in combination with Art. 2828 A-B-C-D-E-F.
Art......................................
2828L 2828P 2828R
Thickness (C)
mm 30
30
30
Width (B)
mm 23
35
68
Overall height (A)
mm 32
64
128
Tooth height
mm 5
5
5
Each 7,90 14,50 20,90
vuoto
The Art. 2828 P is in gray color.
CLAMPINGDEVICES
2828S
Sets of toothed supports.
Each set contains:
8 pcs. x Art. 2828 L
8 pcs. x Art. 2828 P
4 pcs. x Art. 2828 R
Supplied in case.
2828S
Each 352,00
Available on request: couples of side clamps
for contemporaneous vertical/horizontal clamping.
vuoto
CLAMPINGDEVICES
2829
In UNI 42 CrMo4 steel.
According to ASTM A 193-B7 standard - class 10.9 - Threaded bars with thread obtained by
rolling.
Lenght 1000 mm.
Thread
M.
6
8
10
12
14
16
18
2829
Each 6,52
7,54 11,10 12,90 18,40 23,50 26,80
Thread
M.
20
22
24
2829
Each 33,50 41,90 53,60
vuoto
CLAMPINGDEVICES
2829A
In special steel, hardened. Burnished. Screws for T-nuts - DIN 787.
Thread.(D) x length (L) Mxmm
8x32 8x50 8x80 10x40 10x63 10x100 12x63
Thread (B) length
mm 22
35
50
30
45
60
45
Body Ø (A)
mm 7,7
7,7
7,7
9,7
9,7
9,7
11,7
Head dimensions (TxH)
mm 13x6 13x6 13x6 15x6 15x6 15x6 18x7
2829A
Each 11,80 12,10 12,50 4,68
4,86
5,18
5,18
Thread.(D) x length (L) Mxmm
12x80 12x125 12x200 14x63 14x100 14x150 14x230
Thread (B) length
mm 55
75
120
40
65
100
150
Body Ø (A)
mm 11,7
11,7
11,7
13,7
13,7
13,7
13,7
Head dimensions (TxH)
mm 18x7 18x7 18x7 22x8 22x8 22x8 22x8
2829A
Each 5,36
5,70
6,36
5,36
5,70
6,20
7,54
Thread.(D) x length (L) Mxmm
16x80 16x100 16x160 16x250 18x150 18x200 20x80
Thread (B) length
mm 55
63
100
150
100
125
55
Body Ø (A)
mm 15,7
15,7
15,7
15,7
17,7
17,7
19,7
Head dimensions (TxH)
mm 25x9 25x9 25x9 25x9 28x10 28x10 32x12
2829A
Each 6,20
6,86
7,70
8,86
7,86
9,20
8,86
Thread.(D) x length (L) Mxmm
20x125 20x160 20x250 22x100 22x150 22x230 24x100
Thread (B) length
mm 85
110
150
63
100
150
70
Body Ø (A)
mm 19,7
19,7
19,7
21,7
21,7
21,7
23,7
Head dimensions (TxH)
mm 32x12 32x12 32x12 35x14 35x14 35x14 40x16
2829A
Each 10,10 10,90 15,10 13,40 15,10 18,40 15,10
Thread.(D) x length (L) Mxmm
24x160 24x250
Thread (B) length
mm 110
150
Body Ø (A)
mm 23,7
23,7
Head dimensions (TxH)
mm 40x16 40x16
2829A
Each 17,60 26,10
vuoto
CLAMPINGDEVICES
2829B
Screws for T-nuts - DIN 787 (Oversize head).
Thread.(D) x length (L) Mxmm
12x50 12x80 12x125 14x63 14x100 14x160 16x100 16x160
Thread (B) length
mm 35
55
75
45
63 100 63 100
Body Ø (A)
mm 13,7 13,7 13,7 15,7 15,7 15,7 17,7 17,7
Head dimensions (TxH)
mm 22x8 22x8 22x8 25x9 25x9 25x9 28x10 28x10
2829B
Each 6,02 7,02 7,86 6,70 7,02 7,86 9,70 11,10
Thread.(D) x length (L) Mxmm
16x200 16x250 20x100 20x160 20x200 24x125 24x200 24x250
Thread (B) length
mm 125 150 63 110 125 85 125 150
Body Ø (A)
mm 17,7 17,7 21,7 21,7 21,7 27,7 27,7 27,7
Head dimensions (TxH)
mm 28x10 28x10 35x14 35x14 35x14 44x18 44x18 44x18
2829B
Each 11,90 13,40 15,30 17,90 19,80 19,40 23,80 29,10
vuoto
