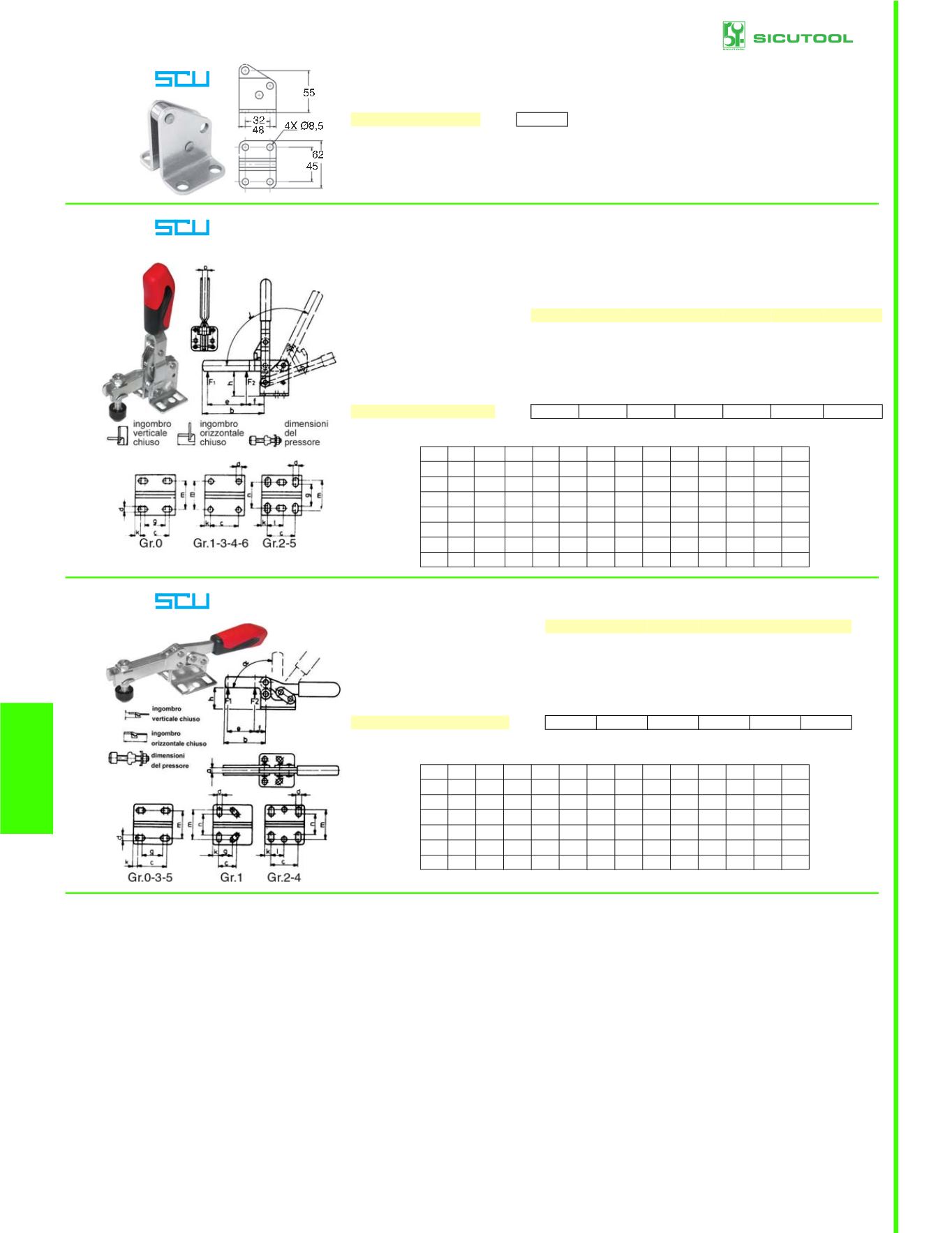

Prices in EURO - VAT not included
678
CLAMPING DEVICES
9
2831GR
Galvanised steel.
Supporting attachment as per Art. 2831 GP.
Weight 225 grams.
2831GR
Each 16,80
vuoto
CLAMPINGDEVICES
2832GA
Prod. SCU - Orig. AMF
High quality safe clamping devices. Double lever operated to avoid release during clamping. In
galvanized steel, with oil-proof handle, hardened and ground support sockets.
Complete with screw and shoe in sturdy hard rubber. Min. and max. holding forces (F1-F2)
expressed in Newton (N).
Vertical type, base plane.
Size
0
1
2
3
4
5
6
Force min F1
N 500
800 1000 1400 2000 3000
3500
Max. force F2
N 700 1100 1200 2500 3000 5000
5500
Vertical dimensions as closed mm 90
105
144
206
230
300
347
Horiz. dimensions as closed mm 49
60
82
112
140
195
230
Presser dimensions
mm M 4x25 M 5x30 M 6x35 M 8x45 M 8x65 M 12x80 M 12x110
Weight
grams 60
105
175
410
630
1480
2200
2832GA
Each 26,80 29,10 37,10 44,70 58,60 95,10 123,00
vuoto
DIMENSIONS:(mm)
Gr. a b c d e f
g h k l
m n
α
0 4 31 13,5 4,5 16 10 8,5 17,5 4,3 -
23 - 95
°
1 5 38 16 4,5 19 14 - 20 5,5 -
24 - 95
°
2 6 51 20 5,5 25 20 24 25 6 12,5 30 27 105
°
3 8 80 20 7,1 43 27 - 34 7,5 -
32 - 105
°
4 10 100 32 8,5 61 30 - 42 13 -
45 - 105
°
5 14 142 45 8,5 88 40 45 55 9,5 31,5 50 45 115
°
6 14 165 50 13 90 55 - 81 24,5 -
70 - 105
°
CLAMPINGDEVICES
2832GF
Product description as Art. 2832GA
Horizontal type, base plane.
Size
0
1
2
3
4
5
Force min F1
N 250
800
1000 1800 2000 3000
Max. force F2
N 400
1100 1200 2500 3000 5000
Vertical dimensions as closed mm 23
30
44
48
74
71
Horizontal dimensions as closed mm 86
130
176
221
293
338
Presser dimensions
mm M 4x25 M 5x30 M 6x35 M 8x45 M 8x65 M 8x65
Weight
grams 35
105
185
320
700
1080
2832GF
Each 23,10 33,20 36,10 45,50 56,40 90,90
vuoto
DIMENSIONS:(mm)
Gr. a b c d e f
g h k l
m n
α
0 4 26 16 4,6 11 10 11,2 15 5 - 16 - 90
°
1 5 40 15 4,8 26 11 13 20 5,5 - 22 18 90
°
2 6 64 26 5,5 35 22 - 25 6 12,7 29 20 90
°
3 8 72 25,5 6,5 44 22 - 33 7 - 29 23 90
°
4 10 111 41 8,5 66 34 - 44 8 20,5 43 29 90
°
5 10 121 41,5 8,5 78 30 41,5 46 12,5 - 41,5 - 90
°
