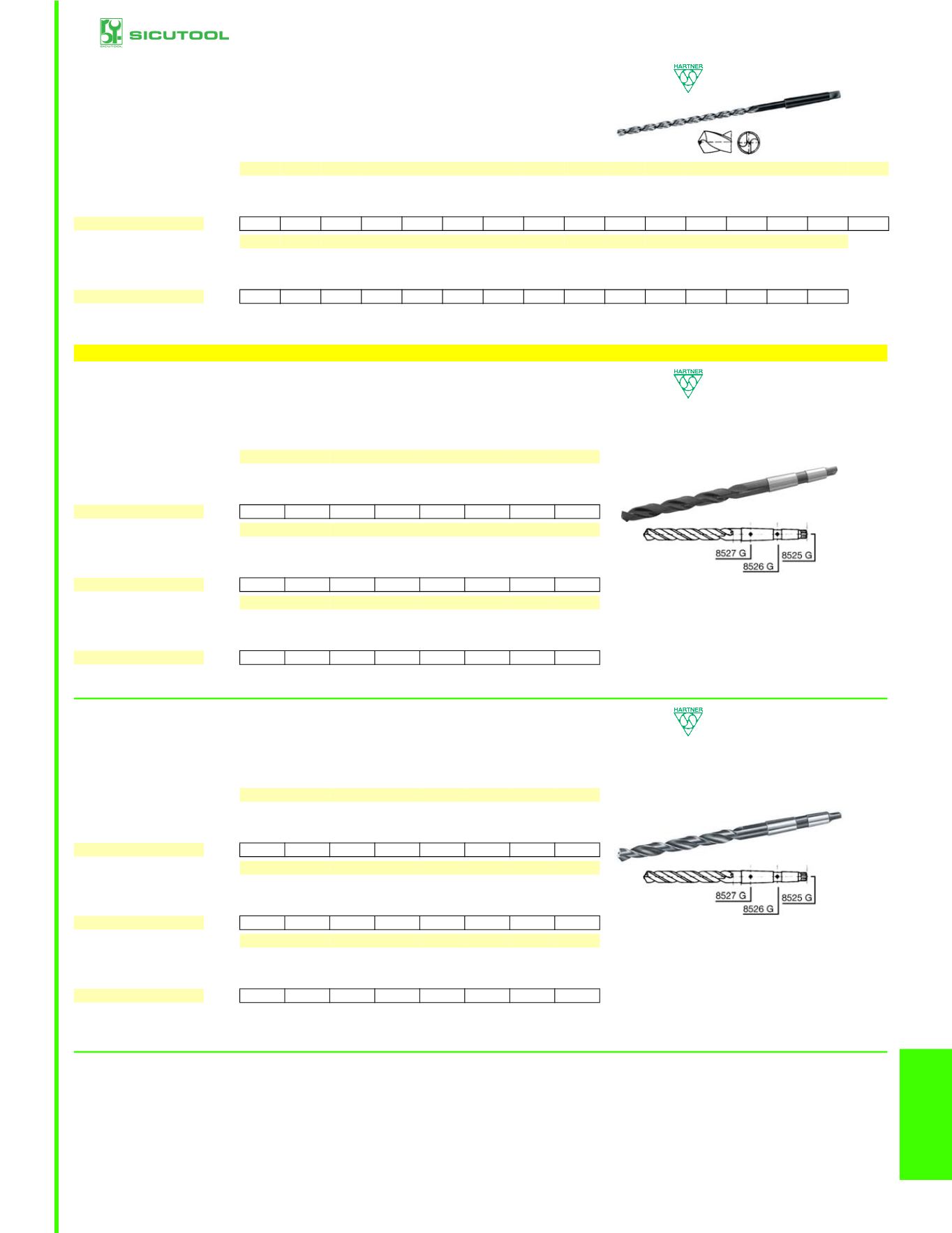

EXTRA-LONG DRILLS FOR METALS, RIGHT-HAND ROTATION
13
8522G
HSS
Orig. Hartner - Art. 82440
DIN 1870. Type FNR2. HSS. Cutting angle 130°,
EXTRA-LONG pattern.
For steel up to 900 N/sqmm, cast iron, bronze and brass.
For deep holes up to 10 times the drill diameter, without chip discharge.
Morse taper shank.
Ø
mm
9*
9,5*
10 12 13 13,5 14 14,5 15 15,5 16 16,5*
17 17,5 18 19
Overall length
mm 345 345 360 395 395 410 410 425 425 445 445 445 445 465 465 465
Helix length
mm 220 220 235 260 260 275 275 275 275 295 295 295 295 310 310 310
Drive
C.M.
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
8522G
Each 163,00 196,00 143,00 195,00 212,00 240,00 210,00 228,00 213,00 264,00 219,00 276,00 253,00 255,00 266,00 300,00
Ø
mm
19,5*
20 21 21,5*
22 22,5*
23 23,5*
24 25 26 26,5*
28 29 29,5*
Overall length
mm 490 490 490 515 515 515 515 535 555 555 555 555 580 580 580
Helix length
mm 325 325 325 345 345 345 345 345 365 365 365 365 385 385 385
Drive
C.M.
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
8522G
Each 351,00 327,00 363,00 338,00 414,00 386,00 512,00 423,00 476,00 478,00 584,00 558,00 743,00 754,00 874,00
* Sizes running out of stock
vuoto
EXTRA-LONGDRILLSFORMETALS,RIGHT-HANDROTATION
LONG SERIES OIL FEED DRILLS, RIGHT HAND CUTTING
8525G
HSS
Orig. Hartner - Art. 82521
DIN 341. Type N. HSS. Cutting angle 118°. Forced lubrication through internal cooling channels.
For steel up to R 900 N/sqmm, hardened cast iron, aluminium alloys, bronze and brass.
Morse taper shank.
Feeding through drive tang.
Ø
mm
10
11
12
13
14
15
16
17
Overall length
mm 233 242 251 251 259 264 270 276
Helix length
mm 116 125 134 134 142 147 153 159
Drive
C.M.
2
2
2
2
2
2
2
2
8525G
Each 248,00 265,00 255,00 252,00 255,00 269,00 280,00 294,00
Ø
mm
18
19*
20
21
22
24
25
26
Overall length
mm 282 307 313 320 327 342 342 350
Helix length
mm 165 171 177 184 191 206 206 214
Drive
C.M.
2
3
3
3
3
3
3
3
8525G
Each 300,00 405,00 324,00 355,00 376,00 405,00 466,00 508,00
Ø
mm
27
28
29
30
32
34*
35*
40
Overall length
mm 385 385 393 393 421 430 430 450
Helix length
mm 222 222 230 230 248 257 257 277
Drive
C.M.
4
4
4
4
4
4
4
4
8525G
Each 518,00 623,00 595,00 671,00 767,00 845,00 1.140,00 1.180,00
* Sizes running out of stock
vuoto
LONGSERIESOILFEEDDRILLS,RIGHTHANDCUTTING
8526G
HSS
Orig. Hartner - Art. 82522
DIN 341. Type N. HSS. Cutting angle 118°. Forced lubrication through internal cooling channels.
For steel up to R 900 N/sqmm, hardened cast iron, aluminium alloys, bronze and brass.
Morse taper shank.
Side feeding through the middle part of the morse taper shank.
Ø
mm
10
11
12
13
14
15
16
17*
Overall length
mm 233 242 251 251 259 264 270 276
Helix length
mm 116 125 134 134 142 147 153 159
Drive
C.M.
2
2
2
2
2
2
2
2
8526G
Each 248,00 265,00 255,00 252,00 255,00 269,00 280,00 274,00
Ø
mm
18
19*
20
21
22
24
25
26
Overall length
mm 282 307 313 320 327 342 342 350
Helix length
mm 165 171 177 184 191 206 206 214
Drive
C.M.
2
3
3
3
3
3
3
3
8526G
Each 300,00 396,00 324,00 355,00 376,00 405,00 466,00 508,00
Ø
mm
27
28
29
30
32
34*
35*
40
Overall length
mm 385 385 393 393 421 430 430 450
Helix length
mm 222 222 230 230 248 257 257 277
Drive
C.M.
4
4
4
4
4
4
4
4
8526G
Each 518,00 623,00 595,00 671,00 767,00 845,00 900,00 1.180,00
For coolant chucks for drills Art. 8526 G, see Art. 8637 GA-E.
