Prices in EURO - VAT not included
6
446

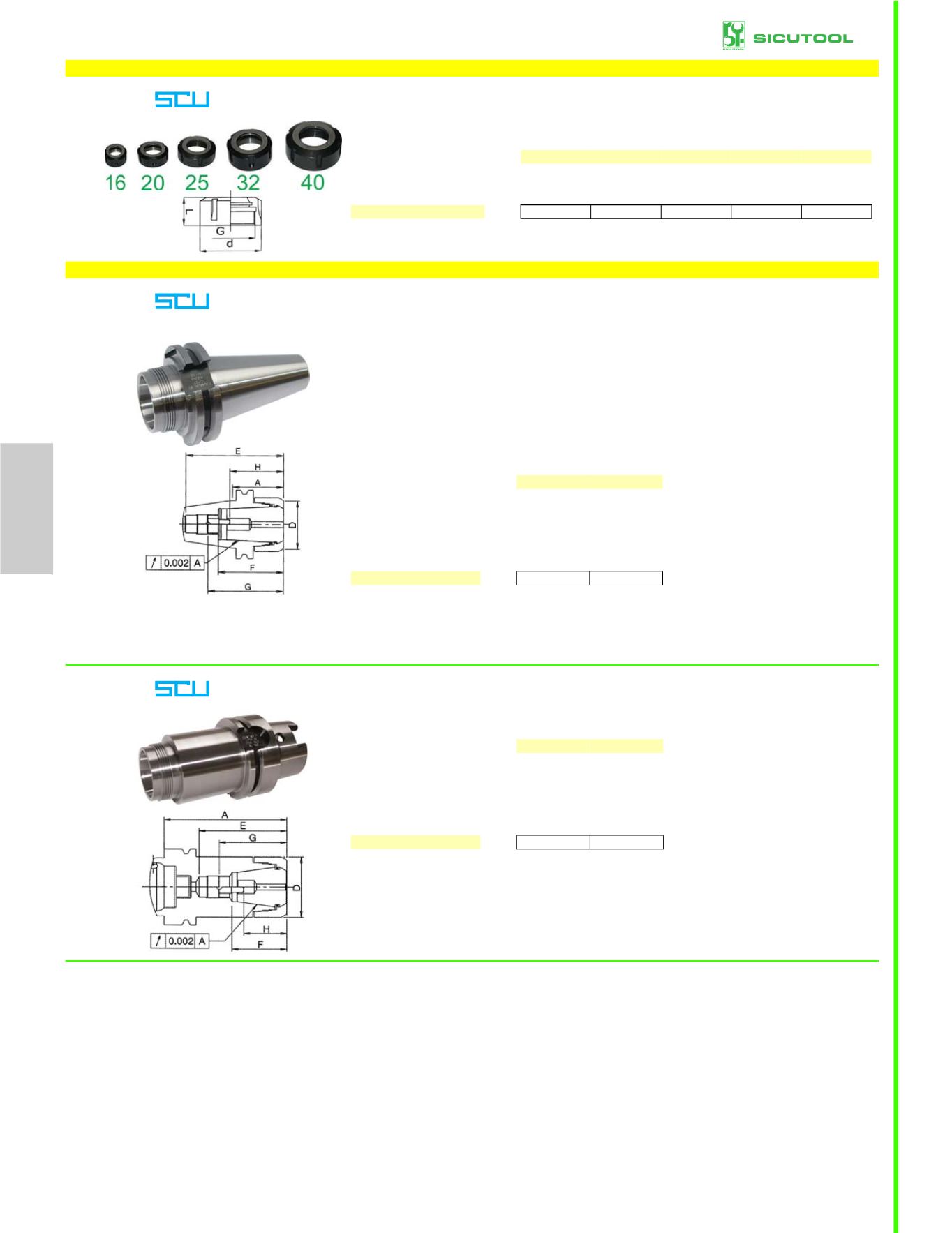

LOCKING COLLARS FOR ER PINCERS HOLDER CHUCKS
LOCKING COLLARS FOR ER PINCERS HOLDER CHUCKS
1560GEC
Prod. SCU
In hardened steel. High-precision, max centring, high tightness and easy replacement of tapping
collets.
For chucks Art. 1560 GA-B-C-D.
For pliers holder chuck
16
20
25
32
40
d ring nut Ø
mm 32
35
42
50
63
Ring-nut height L
mm 17,5
19
20
22,3
25,3
Ring-nut thread G
MF 22x1,5
25x1,5
32x1,5
40x1,5
50x1,5
1560GEC
Each 25,40
25,40
25,40
25,40
33,80
vuoto
LOCKINGCOLLARSFORERPINCERSHOLDERCHUCKS
HIGH QUALITY PINCERS HOLDER CHUCKS, HIGH SPEED
1560GH
Prod. SCU - Orig. Fahrion
Suitable for DIN 6499/ISO 15488 ER collets, with clamping diameter based on the inner size. For
DIN 6535 shanks and full diameters also with internal lubrication. High-precision, very high
resistance, max centring of tools such as milling cutters, drills, countersinks, reamers, boring
bars, etc. with the highest torque. The perfect manufacture of the trapezoidal threaded and long
double guide locking collar ensures max centring, higher rotation precision and repetibility, long-
term performance and easy replacement of tapping collets.
If used together with orig. Fahrion collets Art. 1561 GL-N, this product ensures a precision inferior
or equal to 8 µm.
DIN 69871/ADB ER PINCERS HOLDER CHUCKS
DIN 69871/ADB ISO 40 shank, M16 internally threaded end.
Balancing level G 6.3 15000 rpm.
Type
25
32
Tightening capacity Ø mm 2-16
2-20
Height D
mm 40
50
Height a
mm 45
50
Height E
mm 85
92
Height F
mm -
55
For pliers Art.
1561 GL
1561 GN
1560GH
Each 189,00
189,00
Chucks are supplied without locking collars and without seal rings.
For locking collars and rings see Art. 1560 GPA-B-C-E.
The E value refers to tools with shank < or = 16mm.
The F value refers to tools with shank > 16mm.
vuoto
HIGHQUALITYPINCERSHOLDERCHUCKS,HIGHSPEED
1560GL
Product description as Art. 1560GH
HSK DIN 69893/A-E ER PINCERS HOLDER CHUCKS
DIN 69893/A-E HSK-A63 shank.
Balancing level G 6.3 20000 rpm
Type
25
32
Tightening capacity Ø mm 2-16
2-20
Height D
mm 40
50
Height a
mm 100
100
Height E
mm 60
71
Height F
mm -
45
For pliers Art.
1561 GL
1561 GN
1560GL
Each 211,00
211,00
Chucks are supplied without locking collars and without seal rings.
For locking collars and rings see Art. 1560 GPA-B-C-E.
The E value refers to tools with shank < or = 16mm.
The F value refers to tools with shank > 16mm.
