662 / 1410
662
Prices in EURO - VAT not included
662

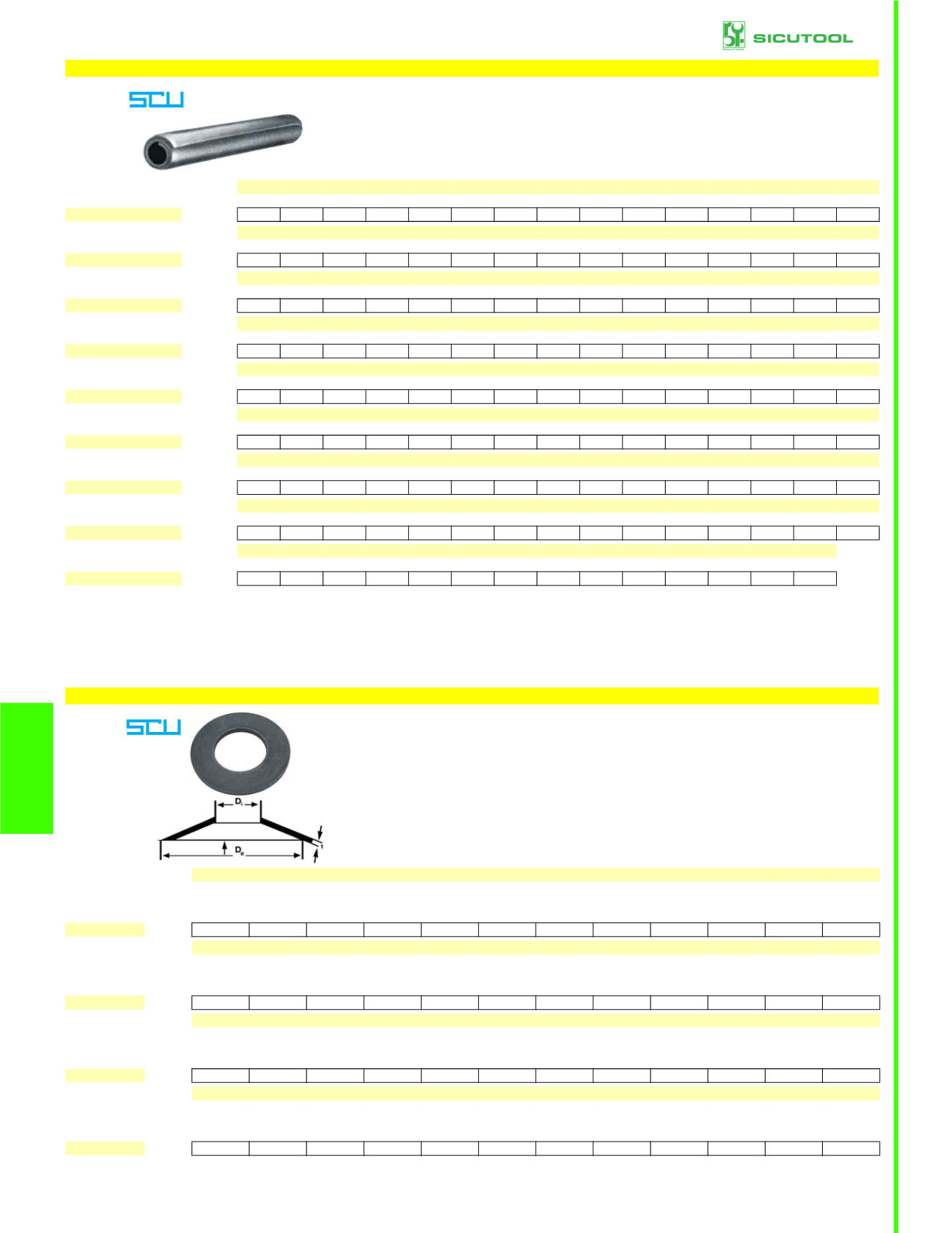

SPIRAL PINS
9
SPIRAL PINS
2811E
Prod. SCU
Model according to ISO 8750 DIN 7343, burnished finish.
In spring special steel C70-55 Si7.
All dimensions have beveled extremities. The spiral cross-section gives high elasticity allowing
these pins an excellent bearing capacity to support dynamic loads.
Mentioned packing units are not sold separately.
Ø for length
mm
1x6 1x8 1x10 1x12 1.5x6 1.5x8 1.5x10 1.5x12 1.5x14 2x5 2x6 2x8 2x10 2x12 2x14
Indivisible pck.
pcs
1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000
2811E
Per pack 54,20 55,70 55,70 57,10 41,40 41,40 42,10 42,80 47,10 38,50 40,10 41,40 42,80 44,20 45,70
Ø for length
mm
2x16 2x18 2x20 2.5x5 2.5x6 2.5x8 2.5x10 2.5x12 2.5x14 2.5x16 2.5x18 2.5x20 3x6 3x8 3x10
Indivisible pck.
pcs
1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000
2811E
Per pack 45,70 48,50 50,10 42,80 42,80 42,80 42,80 44,20 45,70 48,50 50,10 54,20 44,20 44,20 48,50
Ø for length
mm
3x12 3x14 3x16 3x18 3x20 3x22 3x24 3x26 3x28 3x30 3.5x10 3.5x16 3,5x18 3.5x20 3.5x30
Indivisible pck.
pcs
1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000
2811E
Per pack 50,10 51,40 51,40 52,80 54,20 55,70 57,10 58,50 59,90 62,80 58,50 67,10 67,10 71,30 85,60
Ø for length
mm
4x8 4x10 4x12 4x14 4x16 4x18 4x20 4x22 4x24 4x26 4x28 4x30 4x32 4x36 4x40
Indivisible pck.
pcs
500 500 500 500 500 500 500 500 500 500 500 500 500 500 500
2811E
Per pack 27,80 28,60 29,30 30,70 31,40 33,60 33,60 34,30 35,10 36,40 37,80 39,30 42,10 46,40 50,70
Ø for length
mm
4x45 4x50 5x10 5x12 5x14 5x16 5x20 5x22 5x24 5x26 5x28 5x30 5x32 5x36 5x40
Indivisible pck.
pcs
500 500 500 500 500 500 500 500 500 500 500 500 500 500 500
2811E
Per pack 55,70 67,10 35,70 37,10 38,50 40,70 44,20 45,70 47,10 49,20 51,40 54,90 58,50 62,80 67,80
Ø for length
mm
5x45 5x50 5x60 6x12 6x14 6x16 6x18 6x20 6x22 6x24 6x26 6x30 6x32 6x36 6x40
Indivisible pck.
pcs
500 250 250 500 500 500 500 500 500 500 500 500 500 500 250
2811E
Per pack 71,30 39,30 48,20 44,20 48,50 49,20 53,50 54,20 55,70 58,50 62,80 71,30 74,90 82,10 42,80
Ø for length
mm
6x45 6x50 6x55 6x60 6x65 6x70 8x20 8x26 8x28 8x30 8x32 8x36 8x40 8x45 8x50
Indivisible pck.
pcs
250 250 250 250 250 250 500 250 250 250 250 250 250 500 250
2811E
Per pack 46,40 50,10 64,20 67,80 74,90 82,10 92,70 60,60 60,60 71,30 74,90 74,90 74,90 172,00 92,70
Ø for length
mm
8x55 8x60 8x70 8x80 8x100 10x22 10x24 10x26 10x28 10x30 10x32 10x35 10x40 10x45 10x50
Indivisible pck.
pcs
250 250 250 250 100 500 500 500 500 500 500 250 250 250 250
2811E
Per pack 111,00 118,00 150,00 197,00 115,00 164,00 179,00 186,00 200,00 207,00 229,00 118,00 118,00 125,00 161,00
Ø for length
mm
10x60 10x70 10x80 10x90 10x100 12x24 12x30 12x40 12x50 12x60 12x70 12x80 12x90 12x100
Indivisible pck.
pcs
200 100 100 100 100 250 250 200 100 100 100 100 50
50
2811E
Per pack 166,00 99,90 115,00 271,00 314,00 289,00 300,00 263,00 143,00 150,00 172,00 200,00 164,00 229,00
FITTING TOLERANCE RANGE:
nominal Ø of pin from 1 to 3mm = tolerance (H12) mm +0.10
nominal Ø of pin from 3.5 to 6mm = tolerance (H12) mm +0.12
nominal Ø of pin from 7 to 10mm = tolerance (H12) mm +0.15
nominal Ø of pin 12mm = tolerance (H12) mm +0,18.
vuoto
SPIRALPINS
DISE SPRINGS
2811G
Prod. SCU
Model according to DIN 2093.
Phosphated surface for long life. In spring special steel (C67/C75) up to a thickness of 1.1mm. In
CHROME VANADIUM steel (50 Cr V4) from 1.25mm thickness. Tolerance Ø spring: h12 - Hole
tolerance: H12.
Mentioned packing units are not sold separately.
Type
6A
8B
8C
8E
8F
10B 10C 10D 10E
10F
10L
10M
Dimensions (De) mm 6
8
8
8
8
10
10
10
10
10
10
10
(Di) x (t)
mm 3.2x0.3 3.2x0.3 3.2x0.4 4.2x0.3 4.2x0.4 3.2x0.4 3.2x0.5 4.2x0.4 4.2x0.5 5.2x0.25 5.2x0.4 5.2x0.5
Indivisible pck.
pcs
200
200
200
200
200
200
200
200
200
200
200
200
2811G Per pack 12,30
12,30
12,30
12,30
12,30
13,10
13,10
13,10
13,10
10,80
13,10
13,10
Type
12A 12B 12C 12D 12E
12F
12L
12.5B 12.5C 12.5D 14A 14C
Dimensions (De) mm 12
12
12
12
12
12
12
12.5
12.5
12.5
14
14
(Di) x (t)
mm 4.2x0.4 4.2x0.5 4.2x0.6 5.2x0.5 5.2x0.6 6.2x0.5 6.2x0.6 6.2x0.35 6.2x0.5 6.2x0.7 7.2x0.35 7.2x0.8
Indivisible pck.
pcs
200
200
200
200
200
200
200
200
200
200
200
200
2811G Per pack 13,80
14,10
14,10
14,10
14,10
14,10
14,10
13,80
14,10
14,50
14,10
16,10
Type
15A 15C 15E
15F
15M 15P
16A 16B 16E
18A 18B 18C
Dimensions (De) mm 15
15
15
15
15
15
16
16
16
18
18
18
(Di) x (t)
mm 5.2x0.4 5.2x0.6 6.2x0.5 6.2x0.6 8.2x0.7 8.2x0.8 8.2x0.4 8.2x0.6 8.2x0.9 6.2x0.4 6.2x0.5 6.2x0.6
Indivisible pck.
pcs
200
200
200
200
200
200
200
200
200
200
200
200
2811G Per pack 14,10
14,90
14,90
14,90
15,30
16,10
14,90
15,30
16,70
15,30
15,60
16,10
Type
18L
18M 18P
18R 18S
18T
20A 20C 20E
20F
20L
20M
Dimensions (De) mm 18
18
18
18
18
18
20
20
20
20
20
20
(Di) x (t)
mm 8.2x0.7 8.2x0.8 8.2x1 9.2x0.45 9.2x0.7 9.2x1 8.2x0.6 8.2x0.8 8.2x1 10.2x0.5 10.2x0.8 10.2x0.9
Indivisible pck.
pcs
200
200
200
200
200
200
200
200
200
200
200
200
2811G Per pack 16,10
16,70
18,60
15,30
16,10
18,60
16,40
17,50
19,70
16,40
17,50
17,90
SEGUE >>>
