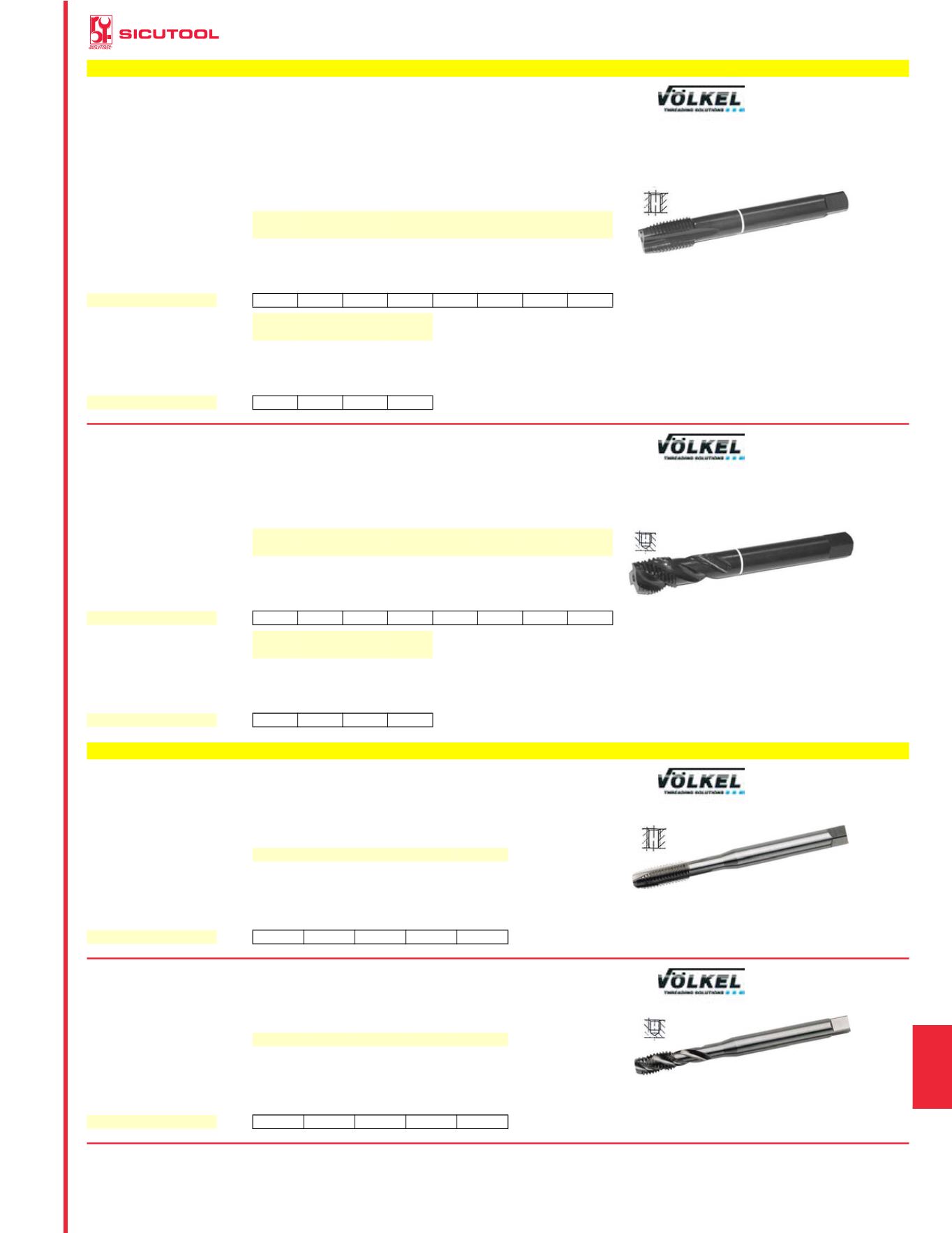

MACHINE TAP WITH COLOURED RINGS
1231
13
Prices in EURO - VAT not included
MACHINE TAP WITH COLOURED RINGS
9288G
INOX
MF
HSS-E
VAP
Orig. Völkel - Art. 359
WHITE collar.
Stainless SUPER-FAST class HSS-E, especially treated for superior performance.
Vaporized. Ground and polished after hardening.
Through shank, proper chamfer for through holes.
Thread: Metric ISO FINE - MF - DIN 13 (DIN 374) compliant.
Right hand use.
For all types of stainless steel and long swarf steels with R up to 1000 N/mm².
Ø
mm
5
6
8
8
10
10
12
12
Pitch
mm
0,5 0,75 0,75
1
1
1,25 1,25 1,5
Overall length
mm 70
80
80
90
90
100 100 100
Thread length
mm 12
14
19
22
20
24
22
22
Shank Ø
mm 3,5
4,5
6
6
7
7
9
9
Shank square
mm 2,7
3,4
4,9
4,9
5,5
5,5
7
7
9288G
Each 24,10 24,10 24,10 24,10 28,10 28,10 38,40 38,40
Ø
mm
14
16
18
20
Pitch
mm
1,5
1,5
1,5
1,5
Overall length
mm 100 100 110 125
Thread length
mm 22
22
25
25
Shank Ø
mm 11
12
14
16
Shank square
mm 9
9
11
12
9288G
Each 47,90 55,20 67,10 74,40
vuoto
MACHINETAPWITHCOLOUREDRINGS
9290G
INOX
MF
HSS-E
VAP
Orig. Völkel - Art. 369
Product description as Art. 9288G
Through shank, 39° spiral flute for deep blind holes.
Thread: Metric ISO FINE - MF - DIN 13 (DIN 374) compliant.
Right hand use.
For all types of stainless steel and long swarf steels with R up to 1000 N/mm².
Ø
mm
5
6
8
8
10
10
12
12
Pitch
mm
0,5 0,75 0,75
1
1
1,25 1,25 1,5
Overall length
mm 70
80
80
90
90
100 100 100
Thread length
mm 5
8
8
10
10
16
15
15
Shank Ø
mm 3,5
4,5
6
6
7
7
9
9
Shank square
mm 2,7
3,4
4,9
4,9
5,5
5,5
7
7
9290G
Each 27,20 27,20 27,20 27,20 32,70 32,30 41,60 41,60
Ø
mm
14
16
18
20
Pitch
mm
1,5
1,5
1,5
1,5
Overall length
mm 100 100 110 125
Thread length
mm 15
15
17
17
Shank Ø
mm 11
12
14
16
Shank square
mm 9
9
11
12
9290G
Each 51,10 59,10 73,50 81,50
vuoto
MACHINETAPWITHCOLOUREDRINGS
MACHINE TAPS
9292G
BSW
HSS-E
Orig. Völkel - Art. 705
REINFORCED SHANK
RIGHT-HAND USE
BSW WHITWORTH THREAD – According to DIN 11 (DIN 371)
HSS-E. Proper chamfer. Universal type. Through holes.
Ø
inches
1/8
3/16
1/4
5/16
3/8
Threads per inch
No
40
24
20
18
16
Overall length
mm 56
70
80
90
100
Thread length
mm 11
15
17
20
22
Shank Ø
mm 3,5
6
7
8
9
Shank square
mm 2,7
4,9
5,5
6,2
7
9292G
Each 11,50 11,50 11,50 14,60 16,30
vuoto
MACHINETAPS
9293G
BSW
HSS-E
Orig. Völkel - Art. 707
Product description as Art. 9292G
HSS-E. Short chamfer. With 35° right-hand spiral flute for metals up to R 900 N/mm². Deep blind
holes.
Ø
inches
1/8
3/16
1/4
5/16
3/8
Threads per inch
No
40
24
20
18
16
Overall length
mm 56
70
80
90
100
Thread length
mm 7
10
13
14
16
Shank Ø
mm 3,5
6
7
8
9
Shank square
mm 2,7
4,9
5,5
6,2
7
9293G
Each 14,60 14,60 14,60 17,60 19,30
vuoto
MACHINETAPS
