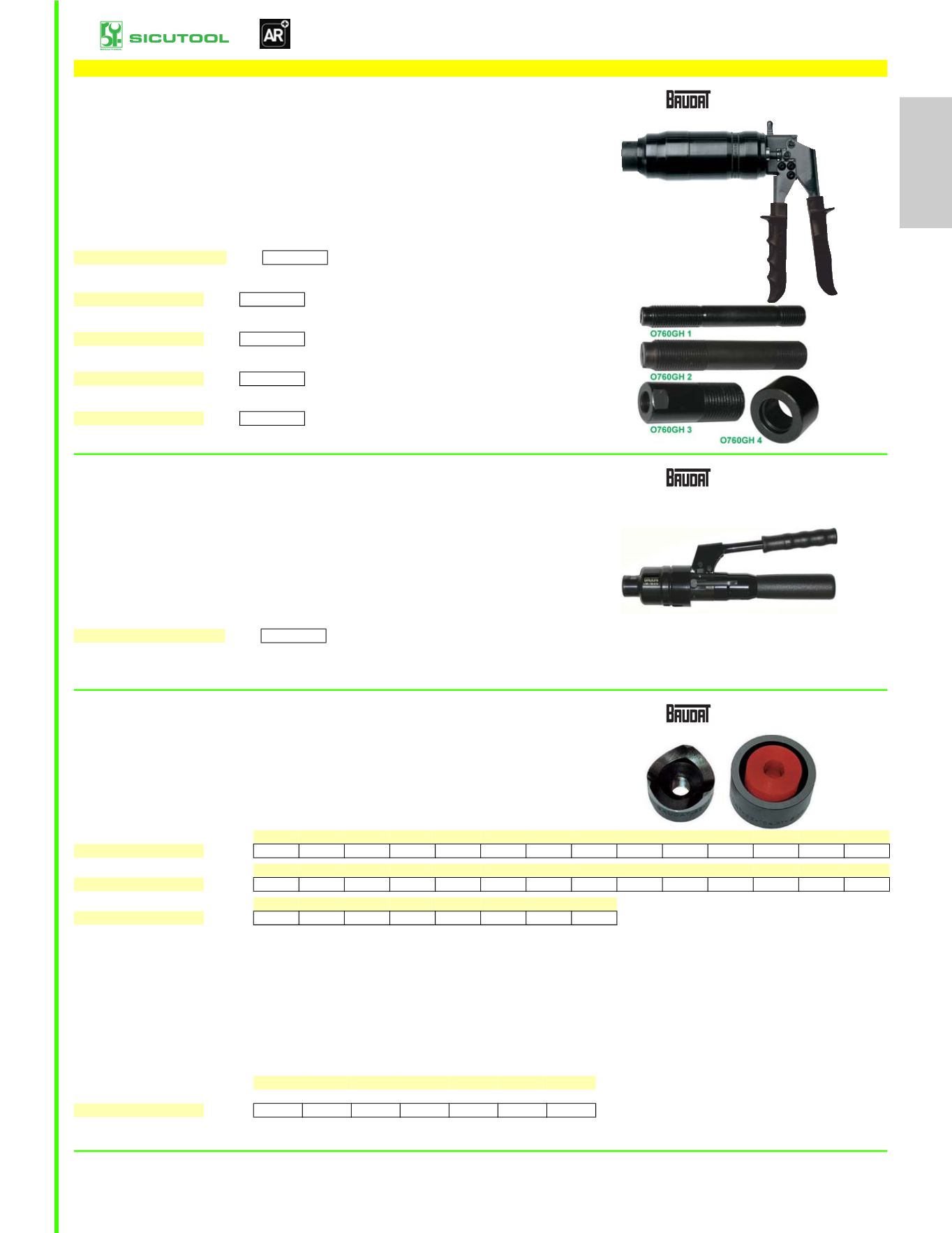

OIL-HYDRAULIC PUNCHERS
2
151
Prices in EURO - VAT not included
OIL-HYDRAULIC PUNCHERS
760GH
Orig. Baudat - Art. 50-099 (Mod. L S6)
Pistol grip type.
Lever hydraulic control, mono-hand, with rapid movement.
Operating parts in hardened steel, reinforced sheet arms, ergonomic and insulated handles.
Complete with 2 punch holder pins, adaptor and spacer.
Punching strength approx. 60 kN (6 t.).
Complete body without punches and dies.
Punches Ø by
mm 15.2 to 100
Punches sheet max. thickness mm 3
Length
mm 340
Weight
Kg
2.4
760GH
Each 830,00
vuoto
Spare pin (3/8x24 UNF) for punches and dies from Ø 15.2mm to 33mm.
O760GH 1
Each 20,80
vuoto
Spare pin (3/4x16 UNF) for punches and dies from Ø 35mm to 100mm.
O760GH 2
Each 48,40
vuoto
Spare adapter for pin Art. 0760 GH 1, with external 3/4x16 UNF thread.
O760GH 3
Each 13,70
vuoto
Spare spacer for punching machines Art. 760 GH - 760 GH 8.
O760GH 4
Each 17,10
vuoto
OIL-HYDRAULICPUNCHERS
760GH 8
Orig. Baudat - Art. 50-616 (Mod. L S8)
Straight universal type.
Lever hydraulic control, with reduced strain movement (Particularly suitable for large diameters).
Operating parts in hardened steel,
reinforced sheet arm, insulated handle. Complete with 2 punch holder pins, adapter and spacer.
Punching strength approx. 80 kN (8 t.).
Complete body without punches and dies.
Punches Ø by
mm 15,2 to 100
Punches sheet max. thickness mm 3
Length
mm 335
Weight
Kg
2.6
760GH 8
Each 984,00
Spare pins see Art. 0760 GH 1-0760 GH 2.
Spare adapter and spacer see Art. 0760 GH 3 – 0760 GH 4.
vuoto
OIL-HYDRAULICPUNCHERS
760GL
760GM
Orig. Baudat - Art. 62-103/104/105
PUNCHES AND DIES FOR ART. 760 GH – 760 GH 8 – 760 GV
In hardened special steel. Up to Ø 33mm with threaded hole 3/8" x 24UNF. From Ø 35mm with
threaded hole 3/4" x 16UNF.
Supplied in couples.
For bores Ø
mm
15,2 16 16,2 18,6 19
20 20,4 21
22 22,5 24
25
26
27
760GL
Per pair 46,10 58,40 58,80 58,10 71,40 73,20 59,50 71,60 87,60 60,90 87,60 107,00 77,10 79,60
For bores Ø
mm
28,3 30 30,5 32
33
35
37
40
42 43,2 45
47
50
54
760GL
Per pair 67,10 84,10 71,10 144,00 147,00 153,00 87,50 162,00 170,00 170,00 227,00 131,00 212,00 152,00
For bores Ø
mm
55 59,3 60
65
70
80
90
100
760GL
Per pair 223,00 168,00 231,00 290,00 291,00 337,00 809,00 872,00
Attention: from 18.6mm to 100mm, punches and dies are equipped with elastic insert for better guided cutting and longer working life.
Available on request: couples of punches and dies, square and rectangular. PG punches and dies sizes are the following:
PG9 mm 15,2 - PG11 mm 18,6 - PG13 mm 20,4 - PG16 mm 22,5 - PG21 mm 28,3 - PG29 mm 37,0 - PG36 mm 47,0 - PG42 mm 54,0 - PG48 mm 59,3.
vuoto
Orig. Baudat - Art. 62-103/104/105
Product description as Art. 760GL
In hardened special steel. Metric measures up to Ø 32,5mm with threaded hole
3/8" x 24UNF. From Ø 40,5mm with threaded hole 3/4" x 16UNF.
Supplied in couples.
For bores Ø
mm
16,5 20,5 25,5 32,5 40,5 50,5 63,5
For screws and pivots
M.
16
20
25
32
40
50
63
760GM
Per pair 46,10 59,50 61,60 73,70 90,10 137,00 171,00
Attention: from 20,5mm to 63,5mm the punches and dies are equipped with elastic insert for better guided cutting and longer working life.
vuoto
