Prices in EURO - VAT not included
1154

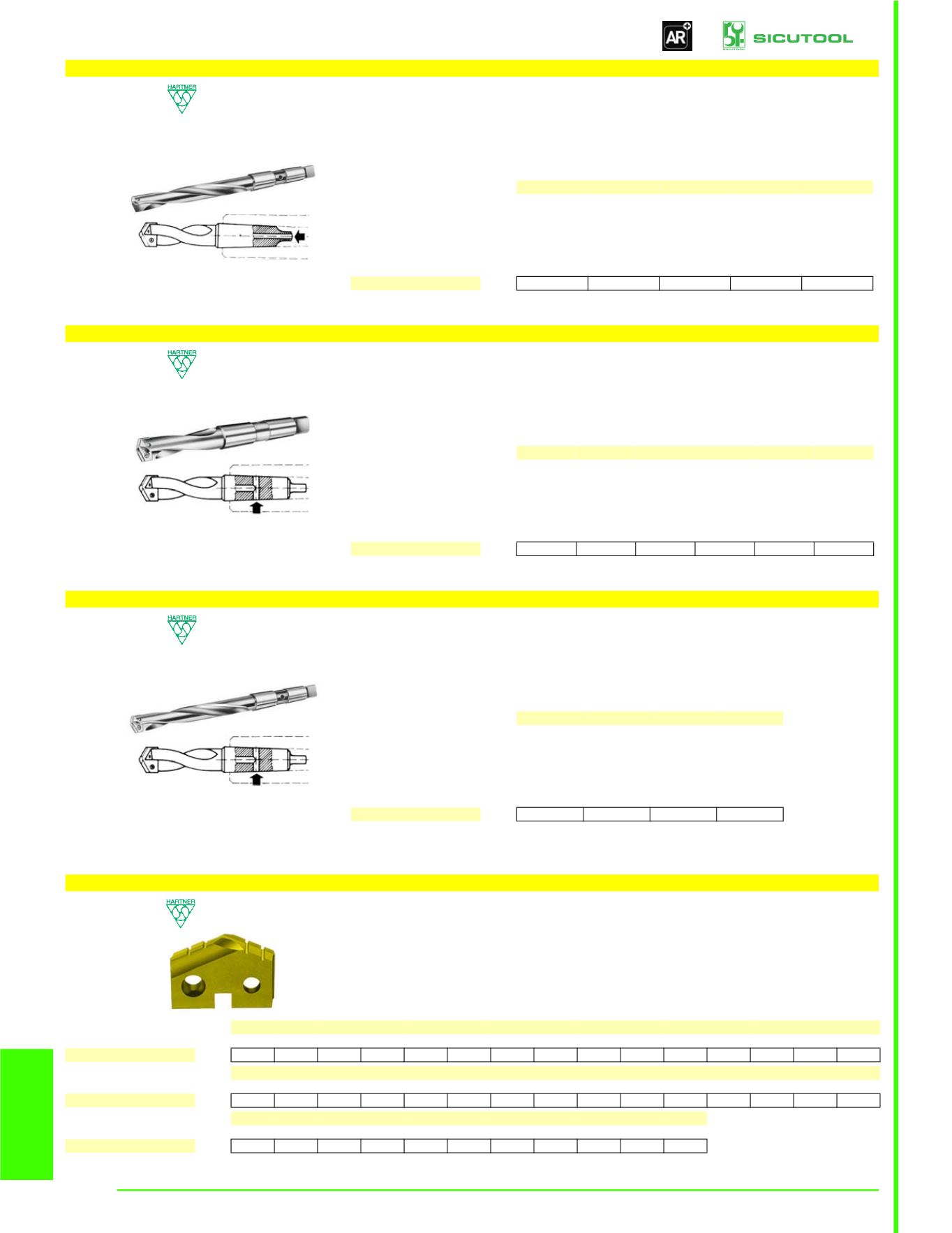

MULTIPLEX SHANK HOLDERS, LONG TYPE
13
MULTIPLEX SHANK HOLDERS, LONG TYPE
8628GL
Orig. Hartner - Art. 86650
LONG type.
Made of steel, forced lubrication through internal cooling channels.
Feeding through aletta di trascinamento. Spiral flute.
Morse Taper shank. RIGHT-HAND rotation.
With 2 screws.
Size
1
3
4
5
6
For plates Ø
mm 10-11,7 13,41-16,4 16,41-18,9 18,91-22,4 22,41-25,4
Drive
C.M.
2
2
2
3
3
Overall length
mm 186
210
218
258
266
Helix length
mm 103
125
135
156
165
TORX screws size
M.
2x4
2,5x5
2,5x7
3x6
3x8
For plates thickness
mm 2,5
3,5
3,5
4
4
8628GL
Each 457,00
534,00
534,00
554,00
554,00
For tool bits see from Art. 8630 GT to 8633 G.
vuoto
MULTIPLEXSHANKHOLDERS,LONGTYPE
MULTIPLEX SHANK HOLDERS, SHORT TYPE
8629G
Orig. Hartner - Art. 86640
SHORT type.
Made of steel, forced lubrication through internal cooling channels.
Side feeding through the middle part of the Morse taper shank. Spiral flute.
Morse Taper shank. RIGHT-HAND rotation.
With 2 screws.
Size
1
2
3
4
5
6
For plates Ø
mm 9,7-11,7 11,71-13,4 13,41-16,4 16,41-18,9 18,91-22,4 22,41-25,4
Drive
C.M.
2
2
2
2
3
3
Overall length
mm 139
141
148
150
178
181
Helix length
mm 56
58
63
67
76
80
TORX screws size
M.
2x4
2x4
2,5x5
2,5x7
3x6
3x8
For plates thickness
mm 2,5
2,5
3,5
3,5
4
4
8629G
Each 390,00 390,00 436,00 436,00 463,00 463,00
For tool bits see Art. 8630 GT to 8633 G.
vuoto
MULTIPLEXSHANKHOLDERS,SHORTTYPE
MULTIPLEX SHANK HOLDERS, LONG TYPE
8629GL
Orig. Hartner - Art. 86660
LONG type.
Made of steel, forced lubrication through internal cooling channels.
Side feeding through the middle part of the Morse taper shank. Spiral flute.
Morse Taper shank. RIGHT-HAND rotation.
With 2 screws.
Size
1
2
3
6
For plates Ø
mm 9,7-11,7 11,71-13,4 13,41-16,4 22,41-25,4
Drive
C.M.
2
2
2
3
Overall length
mm 186
191
210
266
Helix length
mm 103
108
125
165
TORX screws size
M.
2x4
2x4
2,5x5
3x8
Per placchette spessore mm 2,5
2,5
3,5
4
8629GL
Each 413,00
413,00
482,00
501,00
Available on request: tool bit holders, extra-long series, with straight spiral. For tool bits see Art. 8630 GT to 8633.
Product running out of stock
vuoto
MULTIPLEXSHANKHOLDERS,LONGTYPE
MULTIPLEX INTERCHANGEABLE BLADES
8630GT
HSS-E
TIN
Orig. Hartner - Art. 86602
Suitable for drilling high-resistance and difficult to chip steel.
RIGHT-HAND rotation. Supplied without screws.
COBALT HSS-E+TIN. Cutting angle 135°.
Ø
mm
10 10,2 10,5 11
12 12,5 12,75 13 13,5 14 14,25 14,5 14,75 15 15,25
Thickness
mm 2,5 2,5 2,5 2,5 2,5 2,5 2,5 2,5 3,5 3,5 3,5 3,5 3,5 3,5 3,5
8630GT
Each 56,20 56,20 56,20 56,20 56,20 56,20 56,20 56,20 67,10 67,10 67,10 67,10 67,10 67,10 67,10
Ø
mm
15,5 15,75 16 16,5 17 17,5 17,75 18 18,25 18,5 18,75 19 19,5 19,75 20
Thickness
mm 3,5 3,5 3,5 3,5 3,5 3,5 3,5 3,5 3,5 3,5 3,5
4
4
4
4
8630GT
Each 67,10 67,10 67,10 67,10 67,10 67,10 67,10 67,10 67,10 67,10 67,10 78,90 78,90 78,90 78,90
Ø
mm
20,25 20,5 21 21,5 22 22,5 23 23,5 24 24,5 25
Thickness
mm 4
4
4
4
4
4
4
4
4
4
4
8630GT
Each 78,90 78,90 78,90 78,90 78,90 78,90 78,90 78,90 78,90 78,90 78,90
Tool bits Art. 8630 GT up to 25mm suitable for tool bit holder Art. 8625 G/8625 GL/8625 GP/8628 G/8628 GL/8629 G/8629 GL from Size 1 to Size 6.
