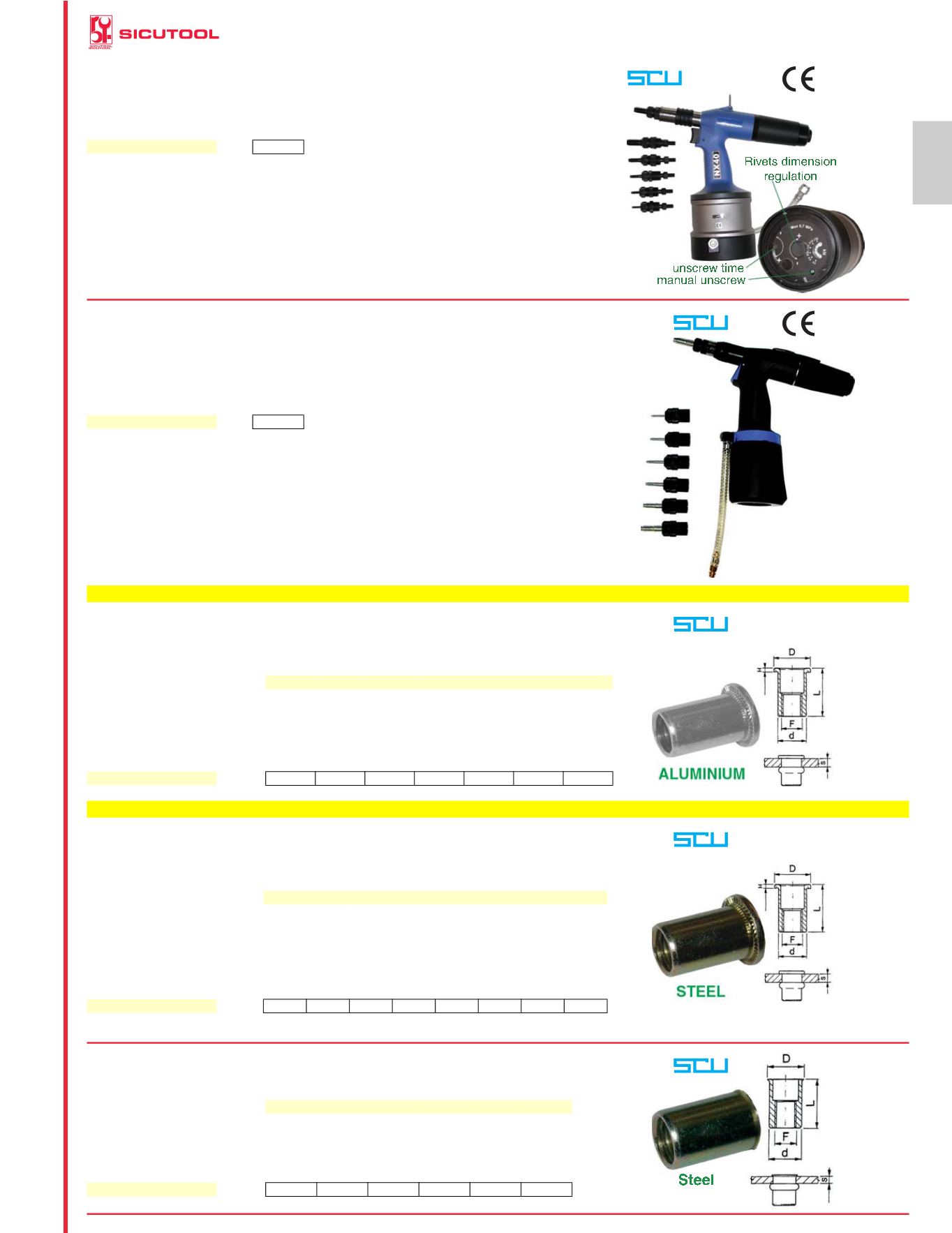

HYDROPNEUMATIC-RIVETERS FOR THREADED RIVETS

109

2

Prices in EURO - VAT not included

514H

Product description as Art. 514G

For aluminium and steel threaded rivets Ø M 4-5-6-8-10-12.

For STAINLESS steel threaded rivets Ø M 4-5-6-8-10.

Length

mm 330

Weight

Kg 2,500

514H

Each 2.440,00

Spare stay bolts on request.

vuoto

HYDROPNEUMATIC-RIVETERSFOR THREADEDRIVETS

514L

new

Hydro-pneumatic tool with great power and durability.

Light alloy body, covered with insulating material.

Air connection with plug for rapid taps and 9 mm hose (see Art. 3480 GD). Operating pressure 5-

7 ATM. With 7 rods complete with bolts and threaded nuts.

For threaded aluminium, steel and stainless steel inserts Ø M 3-4-5-6-8-10-12.

Length

mm 285

Weight

Kg 1,600

514L

Each 1.950,00

vuoto

HYDROPNEUMATIC-RIVETERSFOR THREADEDRIVETS

ALUMINIUM THREADED RIVETS

514P

Prod. SCU

FLAT head.

In aluminium.

Packing: 200 pcs

Thread (F)

M

3

4

5

6

6A

8

10

Bore Ø

mm 5

6

7

9

9

11

12

Thickness (S)

mm 0,3-1,8 0,3-2,5 0,5-3 0,5-2,3 2,3-4 0,8-3,5 1-3,5

Ext. Ø (d)

mm 4,9

5,9

6,9

8,9

8,9

10,9 11,9

Ø with edge (D)

mm 8

9

10

12

12

15

16

Edge thickness (H)

mm 0,8

1

1,2

1,5

1,5

1,5

1,7

Overall length (L)

mm 9

11

13

14,5

16

17,5

19

514P

Per pack 21,50 15,30 16,50 21,20 34,40 26,20 57,60

vuoto

ALUMINIUMTHREADEDRIVETS

STEEL THREADED RIVETS

514R

Prod. SCU

FLAT head.

In steel.

Packing: 200 pcs, only the size 12 with pack 100 pcs.

Thread (F)

M

3

4

5

6

6A 8

10

12

Bore Ø

mm 5

6

7

9

9

11

12

16

Thickness (S)

mm 0,3-

1,8

0,3-

2,5

0,5-3 0,5-

2,3

2,3-4 0,8-

3,5

1-3,5 1-3,5

Ext. Ø (d)

mm 4,9 5,9 6,9 8,9 8,9 10,9 11,9 15,9

Ø with edge (D)

mm 8

9

10

12

12

15

16

22

Edge thickness (H)

mm 0,8

1

1,2 1,5 1,5 1,5 1,7 1,9

Overall length (L)

mm 9

11

13 14,5 16 17,5 19

25

514R

Per pack 12,20 13,90 14,80 17,40 19,10 21,70 33,90 58,90

When stocks are depleted, we will provide only the sizr M12 with knurling.

vuoto

STEELTHREADEDRIVETS

514T

WIRE REDUCED head.

In steel.

Packing: 200 pcs

Thread (F)

M

3

4

5

6

8

10

Bore Ø

mm 5

6

7

9

11

12

Thickness (S)

mm 0,5-1,5 0,5-1,5 0,5-2 0,5-2 1-2,5 1-2,5

Ext. Ø (d)

mm 4,9

5,9

6,9

8,9

10,9

11,9

Ø with edge (D)

mm 5,5

6,7

8

10

12

13,5

Overall length (L)

mm 8,5

10

12

13,5

16,5

18

514T

Per pack 12,20 13,90 14,80 17,40 21,70 33,90

vuoto

STEELTHREADEDRIVETS
