2128

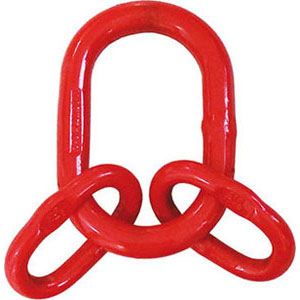

LIFTING MASTER LINKS

Prod. SCU

EN 1677-4

Triple type, in alloy steel grade 80, painted.
Suitable for lifting dynamic loads with 3-4 arm slings and for anchoring static loads.

Safety factor 4.

For dimensional measurements of the triple lifting master links see the technical table at the end of the catalog.

2128 - LIFTING MASTER LINKS - Prod. SCU
 Cod. Art.Cad.Min. qtyØ larger ring x Ø smaller rings
mm
Length of larger ring
mm
Width of larger ring
mm
Maximum working load
Kg
Cod. Prod.WeightNote
(*)2128 18 13€ 25,10118x1313575Più dettagli2360 1.04
(*)2128 22 16€ 44,10122x1616090Più dettagli4250 2.37
(*)2128 26 18€ 65,50126x18180100Più dettagli6700 3.64
(*)2128 32 22€ 118,00132x22200110Più dettagli11200 6.24
(*)2128 36 26€ 192,00136x26260140Più dettagli17000 10
(*)2128 50 32€ 627,00150x32350190Più dettagli26500 22.6
