8540G

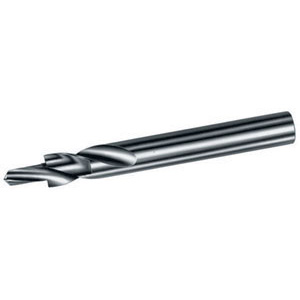

COMBINATION SHORT BITS FOR THROUGH HOLES, 180 ° RIGHT ROTATION

« PREVIOUS page | NEXT item »

straight shank subland drills 180° included angle, right hand cutting

https://sicu.info/en-US/8540G | Go to products page no. 1229 »

Orig. Hartner

Type N. HSS. Cutting angle 118°.

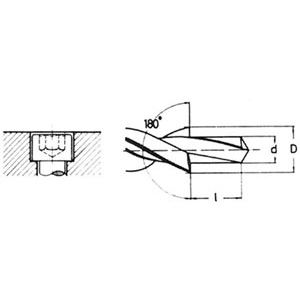

180° angle, for seats of embedded flat die screws.
Cylindrical shank.

What do you want to do?

ATTACHED FILES related to the product

Spare parts and accessories »

NEWS related to the product»

8540G - COMBINATION SHORT BITS FOR THROUGH HOLES, 180 ° RIGHT ROTATION - Orig. Hartner

8540G - COMBINATION SHORT BITS FOR THROUGH HOLES, 180 ° RIGHT ROTATION - Orig. Hartner

	Cod. Art.	Cad.	Min. qty	For screws M.	Guide tip Ø d mm	Countersink D Ø mm		Guiding spiral I length mm	Spiral total length. mm	Overall length mm	Cod. Prod.	Weight	Note
(*)	8540G 3	€ 46,90	1	3	3,4	6	Più dettagli	9	28	66	85918	0.011
(*)	8540G 4	€ 50,30	1	4	4,5	8	Più dettagli	11	37	79	85918	0.03
(*)	8540G 5	€ 59,90	1	5	5,5	10	Più dettagli	13	43	89	85918	0.06
(*)	8540G 6	€ 68,80	1	6	6,6	11	Più dettagli	15	47	95	85918	0.08
(*)	8540G 8	€ 86,70	1	8	9	15	Più dettagli	19	56	111	85918	0.11
(*)	8540G 10	€ 148,00	1	10	11	18	Più dettagli	23	62	123	85918	0.18
