8538G

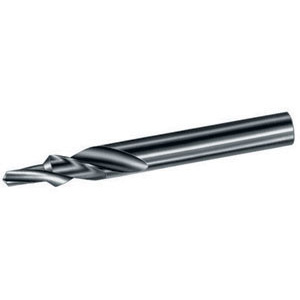

COMBINED SHORT DRILLS FOR HOLES TO BE TAPPED, 90 ° RIGHT ROTATION

« PREVIOUS page | NEXT item »

straight shank subland drills 90° included angle right, hand cutting

https://sicu.info/en-US/8538G | Go to products page no. 1228 »

Orig. Hartner

Type N. HSS. Cutting angle 118°. Countersinking angle 90°.
Cylindrical shank.

What do you want to do?

ATTACHED FILES related to the product

Tabella tecnica Nr. 24 Dimensioni degli attacchi cilindrici in MD »

Spare parts and accessories »

NEWS related to the product»

8538G - COMBINED SHORT DRILLS FOR HOLES TO BE TAPPED, 90 ° RIGHT ROTATION - Orig. Hartner

8538G - COMBINED SHORT DRILLS FOR HOLES TO BE TAPPED, 90 ° RIGHT ROTATION - Orig. Hartner

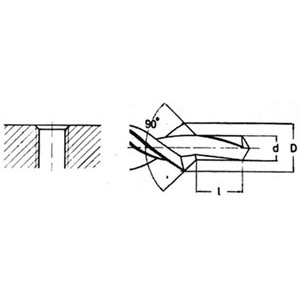

	Cod. Art.	Cad.	Min. qty	For screws M.	Guide tip Ø d mm	Countersink D Ø mm		Guiding spiral I length mm	Spiral total length. mm	Overall length mm	Cod. Prod.	Weight	Note
(*)	8538G 3	€ 37,90	1	3	2,5	3,4	Più dettagli	8,8	20	52	85920	0.011
(*)	8538G 4	€ 37,90	1	4	3,3	4,5	Più dettagli	11,4	24	58	85920	0.04
(*)	8538G 5	€ 42,10	1	5	4,2	5,5	Più dettagli	13,6	28	66	85920	0.07
(*)	8538G 6	€ 44,10	1	6	5	6,6	Più dettagli	16,5	31	70	85920	0.09
(*)	8538G 8	€ 52,90	1	8	6,8	9	Più dettagli	21	40	84	85920	0.11
(*)	8538G 10	€ 68,10	1	10	8,5	11	Più dettagli	25,5	47	95	85920	0.14
(*)	8538G 12	€ 101,00	1	12	10,2	13,5	Più dettagli	30	54	107	85920	0.16
